Reassembly

REASSEMBLY

1. Apply multi-purpose grease to the contacting surface of the knuckle hub and bearing thinly.

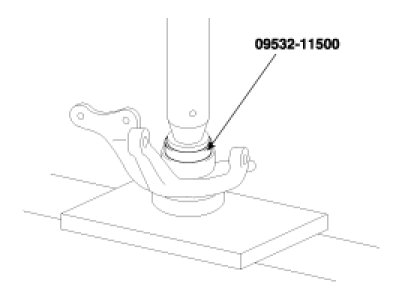

2. Using the Special Tool (09532-11500), press-in the bearing to the knuckle.
A. Install the snap ring.

NOTE:
1) Press-in the outer race of the wheel bearing to prevent damage to the bearing assembly.
2) When installing a bearing assembly, always use a new one.
3) The right and the left bearings must be replaced as a matched set.




3. Using a plastic hammer, install the dust cover.
4. Press-in the hub to the knuckle.

Press fit load : 20 - 25 KN (2000 - 2500 kgf)

NOTE:
Press-in the inner race of the wheel bearing to prevent damage to the bearing assembly.

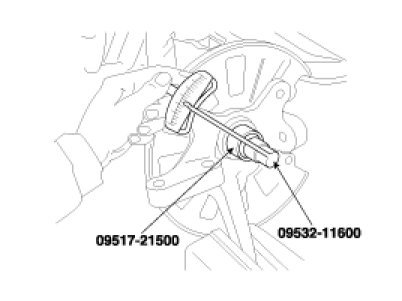

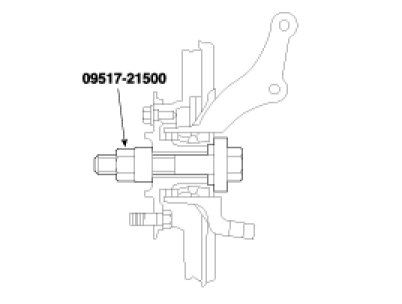

5. Tighten the hub and the knuckle to the specified torque using the Special Tool (09517-21500).

Specified torque Nm (kgf-m, lb-ft) : 200 - 260 (20 - 26, 144 - 188)




6. Measure the hub bearing starting torque.

Hub bearing starting torque [Limit] 1.3 Nm (13 kgf-m, 0.94 lb-ft) or less




7. If the starting torque is 0 Nm (0 kg-cm, 0 lb-ft), measure the hub bearing axial play.




8. If the hub axial play exceeds the limit while the nut is tightened to 200 - 260 Nm (20 - 26 kgf-m, 145 - 188 lb-ft), the bearing, hub and knuckle are not installed correctly. Repeat the disassembly and assembly procedure.

Hub bearing axial play [Limit] 0.008 mm (0.0003 in) or less

9. Remove the Special Tool.
10. Fix the brake disc with the mounting screws.
