Air conditioning System Drive belt

INSPECTION

GASOLINE (a1.6 Engine)
1. Compressor shall be operated once or twice a month even in seasons air conditioning is not required, and compressor belt tension shall be adjusted from time to time.

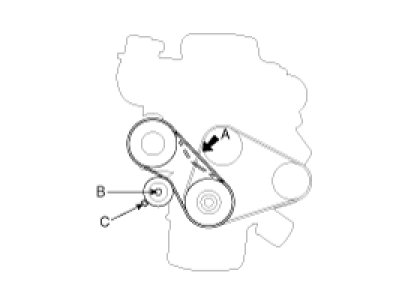

2. Apply a force of 98N (10kgf, 22lbf), and measure the deflection at the mid point (A) between the air condition compressor and crankshaft pulley.

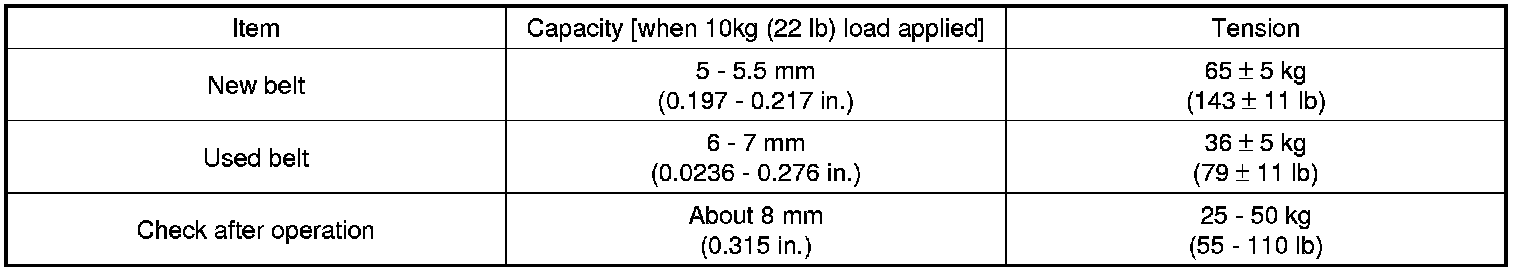

NOTE:
- If there are cracks or any damage evident on the belt, replace it with a new one.
- "Used belt" means a belt which has been used for five minutes or more.
- "New belt" means a belt which has been used for less than five minutes.
