Home >> Kia >> 2008 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Harness >> Floor Harness (5 Door)

Floor Harness (5 Door)

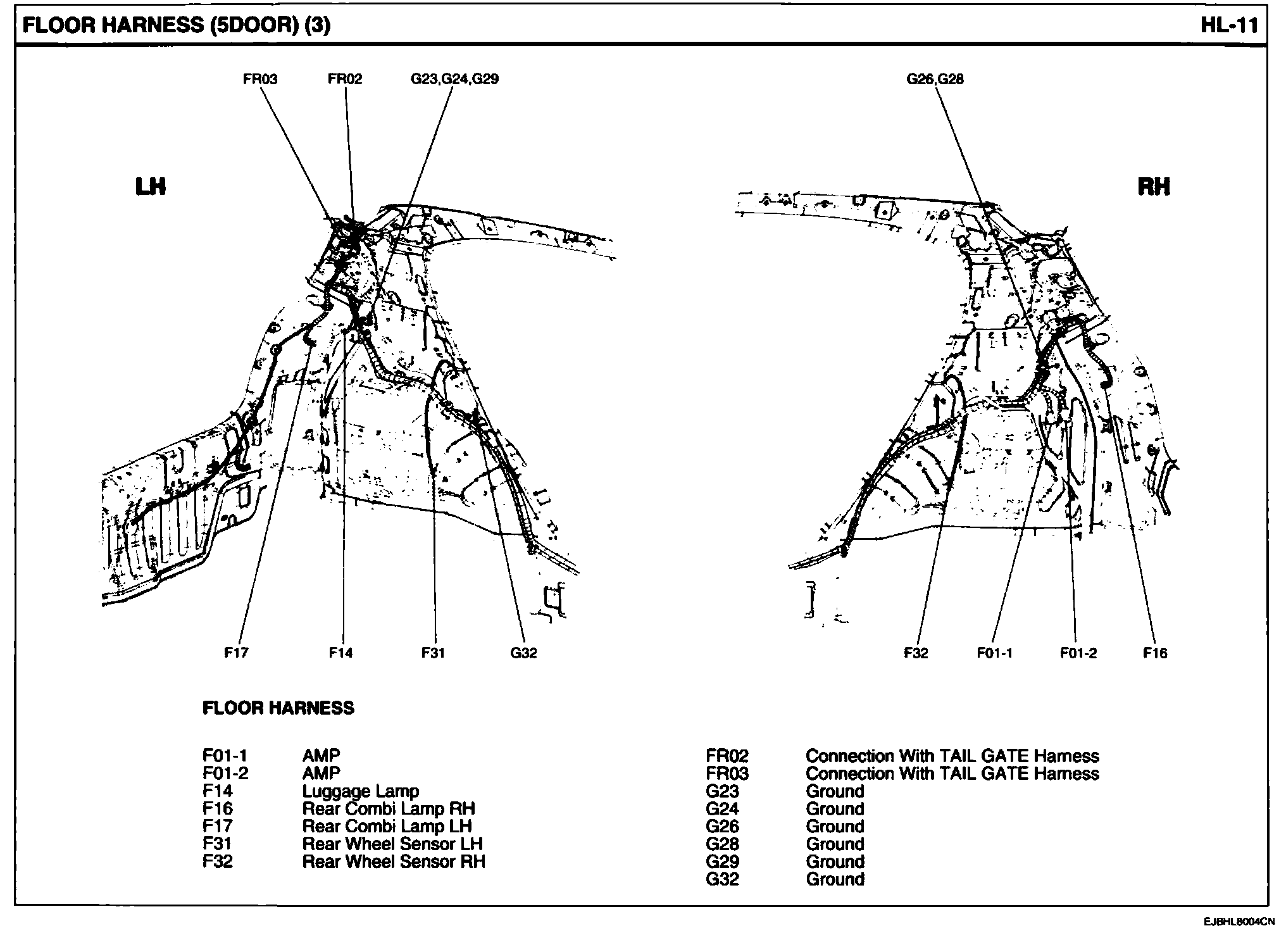

Floor Harness (5DOOR) (3):
