Repair Procedures

REMOVAL

REAR DRUM BRAKE

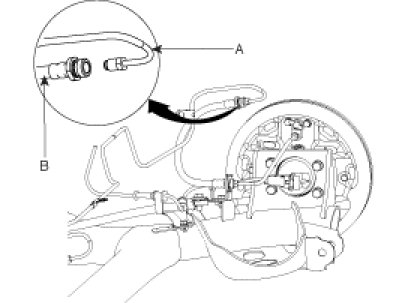

1. Disconnect the brake hose(B) from the brake line(A) using a flare-nut.




2. Remove the brake hose(B) from the brake line(C) using a flare-nut.

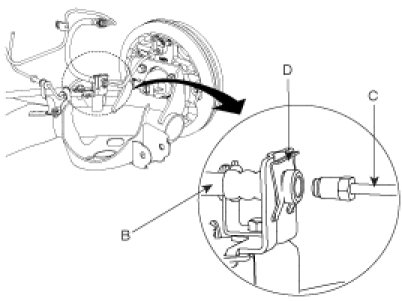

3. Remove the brake hose slip(D), and the remove the brake hose.

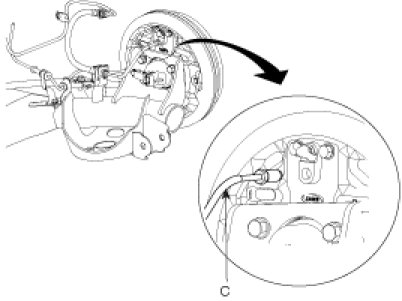

4. Disconnect the brake tube(C) from the drum brake using a flare-nut.






INSTALLATION

REAR DRUM BRAKE
1. Install a brake tube(C) on the drum brake using a flare-nut.




2. Install the brake hose clip(D) to brake hose bracket, the install the brake hose(B).




3. Connect the brake hose(B) to the brake line(A) using a flare-nut.
4. Connect the brake hose to the brake line(A).
5. After installing the brake hose, bleed the brake system.

CAUTION:
- Check the brake hoses for interference and twisting.
- Check the brake hose and line joint for leaks, and tighten if necessary.
