Front Brake Pad Check

INSPECTION

FRONT BRAKE PAD CHECK

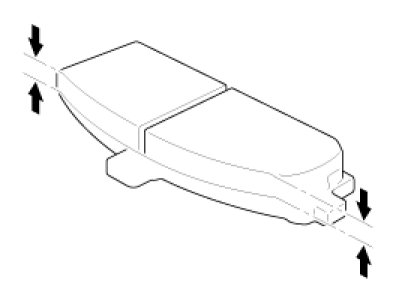

1. Check the pad wear. Measure the pad thickness. replace it if it is less than the specified value.

Pad thickness
Standard value : 11.0 mm (0.43 in)
Service limit : 2.0 mm (0.0787 in)





2. Check that grease is applied to sliding contact points and if there is damage to the pad and backing metal.
