Sun Shade: Service and Repair

REPLACEMENT

SUNSHADE AND DRIP RAIL REPLACEMENT
1. Remove the sunroof assembly

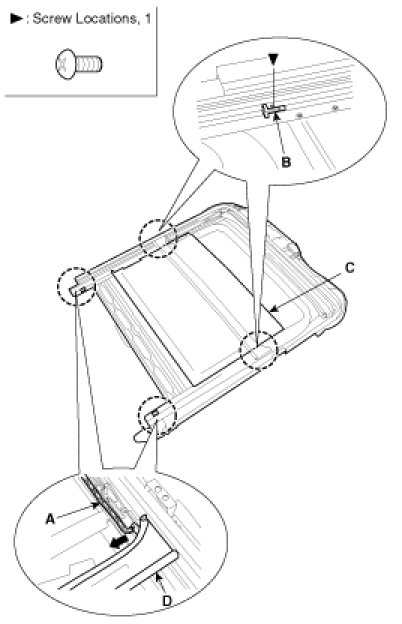

2. Remove the drip link (A) and sunshade stopper (B).
3. Remove the sunshade (C) and drip rail (D).




4. Installation is the reverse of removal.
