Front Door Latch: Service and Repair

REPLACEMENT

FRONT DOOR LATCH REPLACEMENT
1. Remove the door trim.
2. Remove the inside handle.
3. Remove the channel.

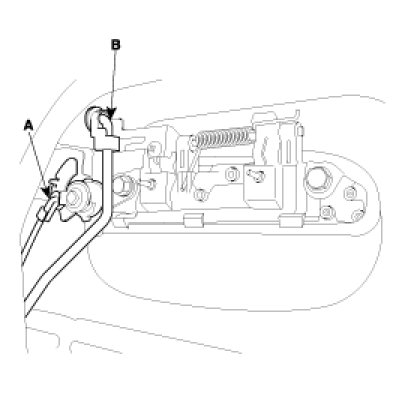

4. Disconnect the lock cable(A), out side handle cable(B).




5. After disconnect the connector(B), loosen the mounting bolts. Remove the latch assemble(A).




6. Installation is the reverse of removal.

NOTE:
- Roll the glass up down to see if it move freely without binding.
- Make sure the door lock and opens properly.
