C1211

C1211

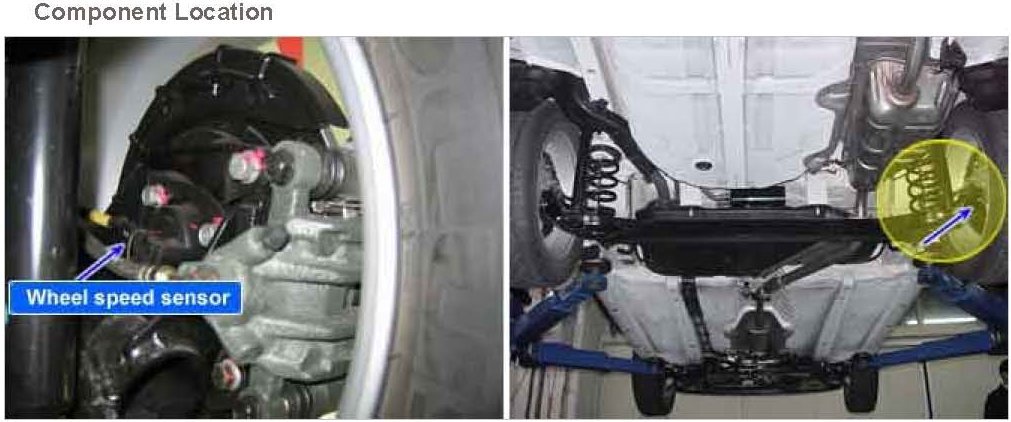

Component Location:

General Description
The wheel speed sensor is the essential component the ABS ECU uses to calculate vehicle speed and to determine whether wheel lock occurs.
For example, rear wheel speed signal is used as a reference value, for vehicle speed, in front wheel drive vehicles, and if a difference between front and rear wheel speed occurs, then ABS control is performed.

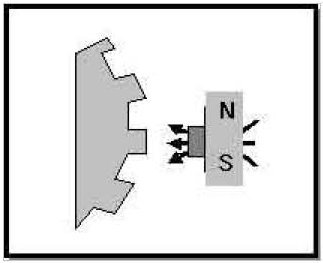

Wheel speed sensor is active hall-sensor type and good at temperature and noise characteristic.

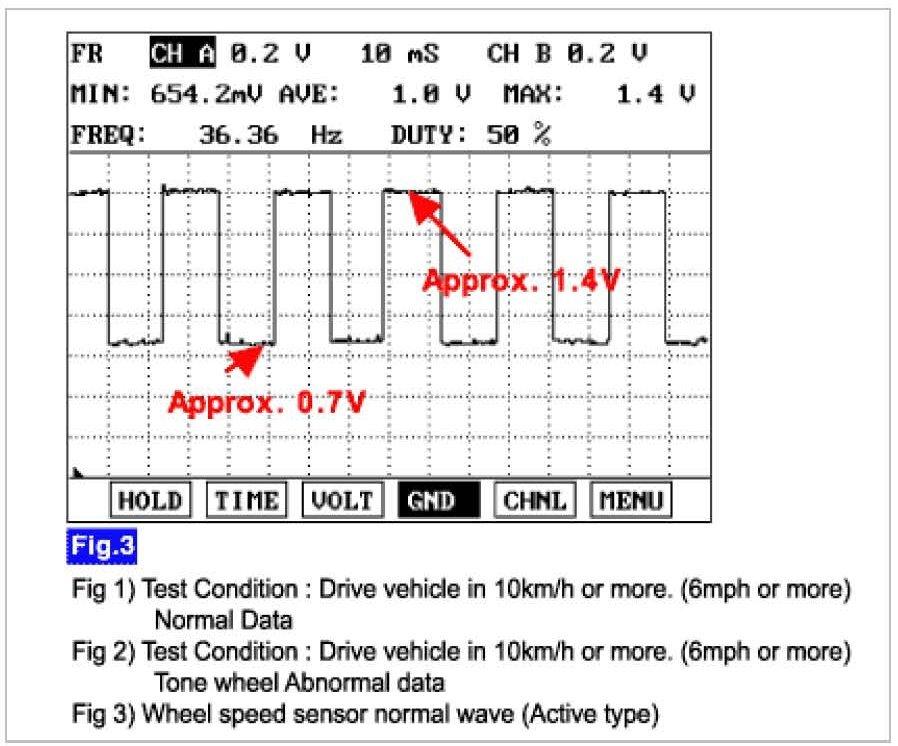

Digital wave is produced as tone wheel rotate according as hall sensor principle.
Frequency of duty wave is changed in proportion to rotation of tone wheel and HECU calculate vehicle speed by this frequency.






DTC Description
The ABS ECU monitors the wheel speed sensor circuit continuously.
If the sensor signal current is continuously out of the specified range for 140 msec, then the HECU determines that the circuit is open/short, and sets this code. Warning lamp is turned OFF if the detected fault is not more than when the IG KEY is turned to ON again, and wheel speeds are more than 10 km/h.

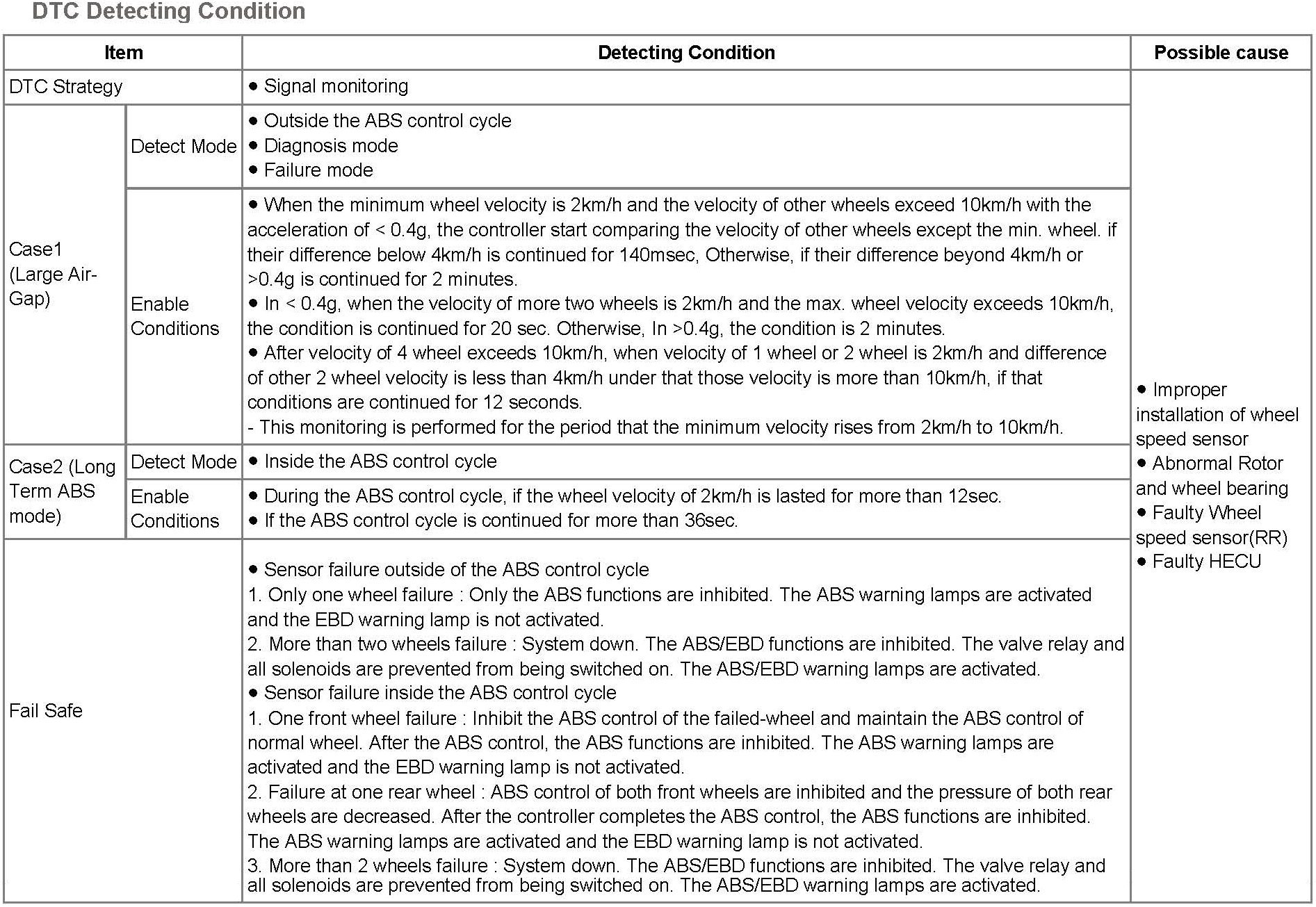

DTC Detecting Condition:

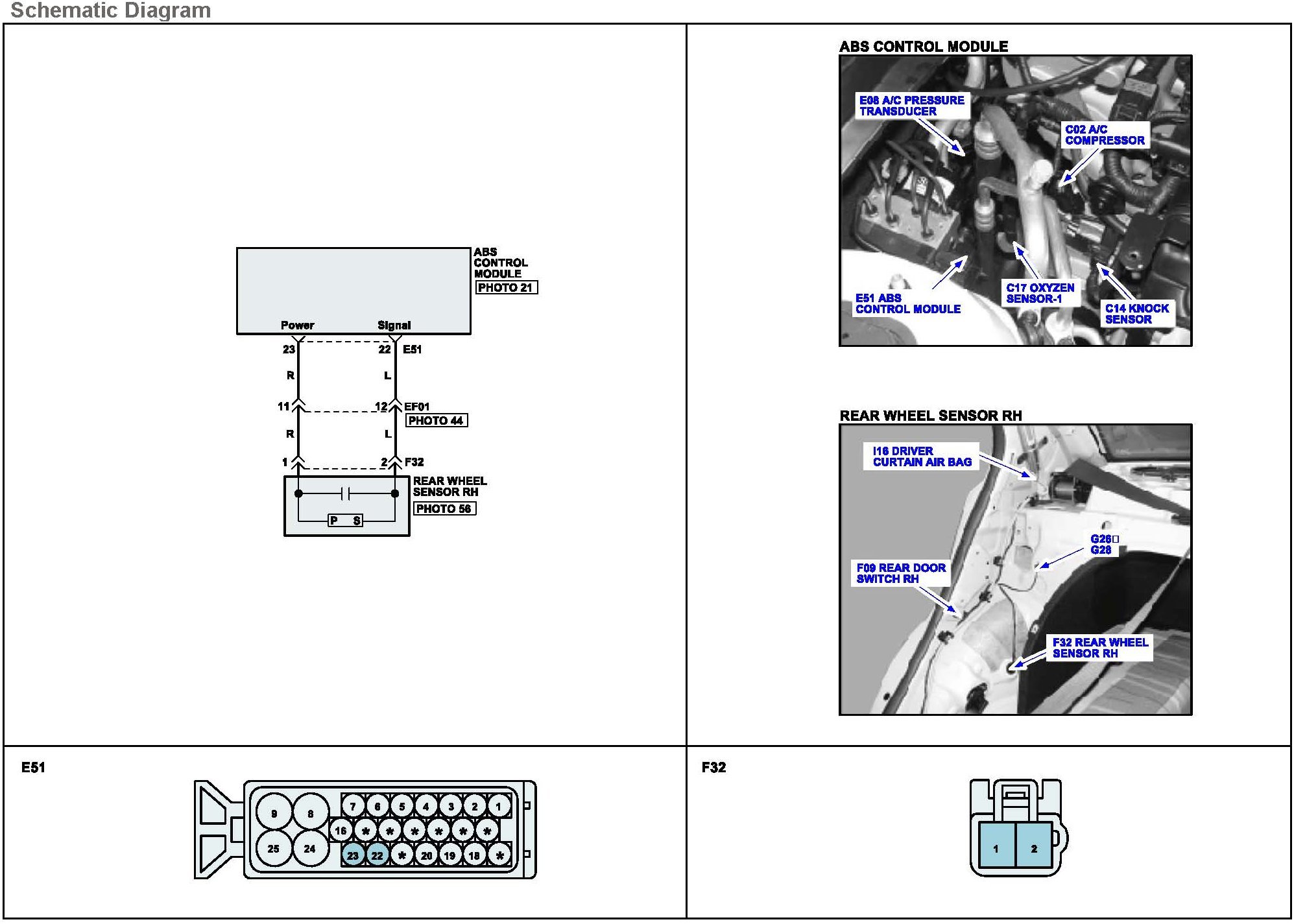

Schematic Diagram:

Monitor Scantool Data
1. Connect scantool to Data Link Connector (DLC)
2. Engine "ON".
3. Start and drive vehicle in gear and maintain vehicle speed is approx. 10 km/h or more (6 mph or more)

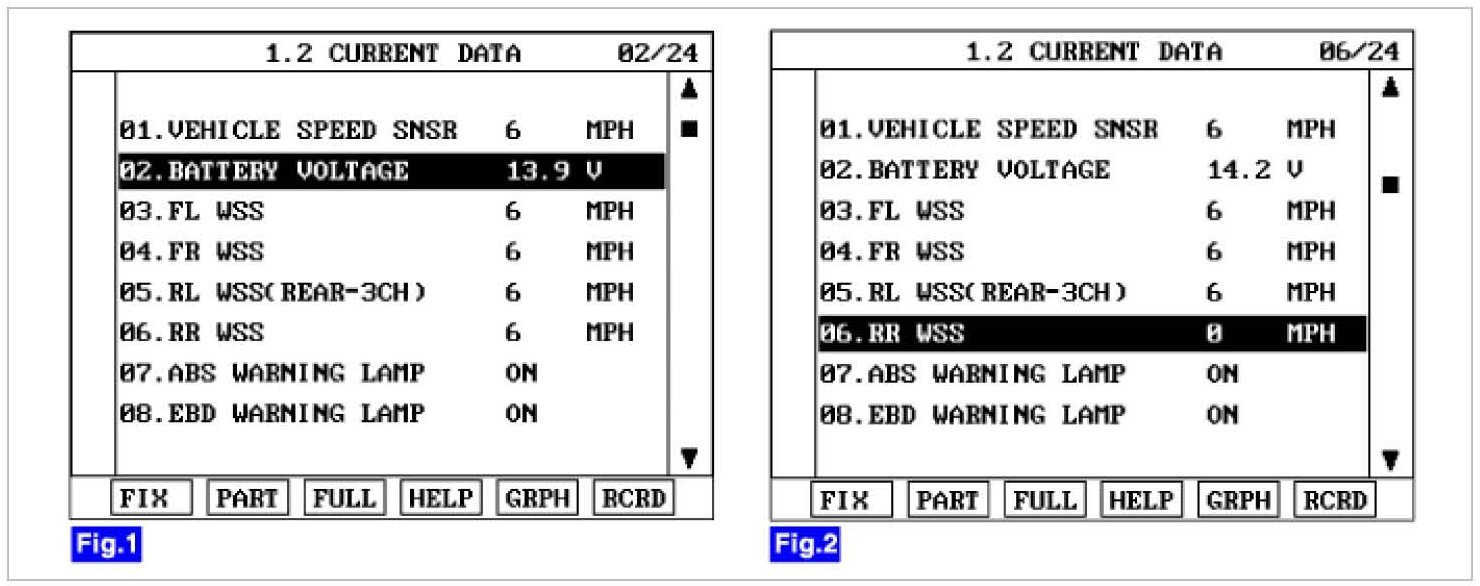

4. Monitor the "RR WSS" parameter on the Scantool.

Specification : Approx. 10 km/h or more (6 mph or more)









5. Is parameter displayed within specifications?

YES - Fault is intermittent caused by wheel speed sensor (RR) and/or faulty HECU or was repaired and HECU memory was not cleared. Go to "Component Inspection" procedure.

NO
- Check for improper installation of wheel speed sensor. If NG, repair as necessary and then go to "Verification of vehicle Repair" procedure.
- Check for damage of rotor teeth or wheel bearing. If NG, repair as necessary and then go to "Verification of vehicle Repair" procedure.
- Substitute with a known-good Wheel speed sensor and check for proper operation. If problem is corrected, replace Wheel speed sensor and then go to "Verification of Vehicle Repair" procedure.
- If OK, Go to "Component Inspection" Procedure.

Component Inspection
1. Ignition "OFF".
2. Engine "ON".
3. Start and drive vehicle in gear and maintain vehicle speed is approx. 10 km/h or more (6 mph or more)
4. Does warning lamp remain On?

YES - Substitute with a known-good HECU and check for proper operation. If problem is corrected, replace HECU and then go to "Verification of Vehicle Repair" procedure.

NO - Fault is intermittent caused by poor connection in wheel speed sensor harness (RR), Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and then go to "Verification of vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode
2. Using a Scantool, Clear DTC.
3. Operate the vehicle within DTC Detecting Condition in General Information. (Start and drive vehicle in gear and maintain vehicle speed is approx. 10 km/h or more (6 mph or more))
4. Are any DTCs present?

YES - Go to the applicable troubleshooting procedure.

NO - System performing to specification at this time.
