Windshield Deicer

INSPECTION

1. Remove the cowl top cover.(Refer to the wiper)

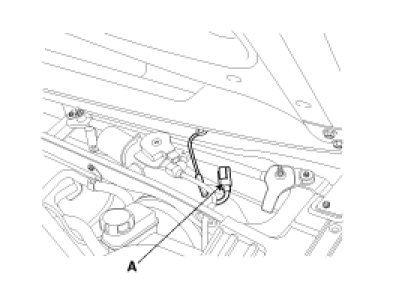

2. Disconnect the windshield deicer connector (A) from the wiper motor linkage.

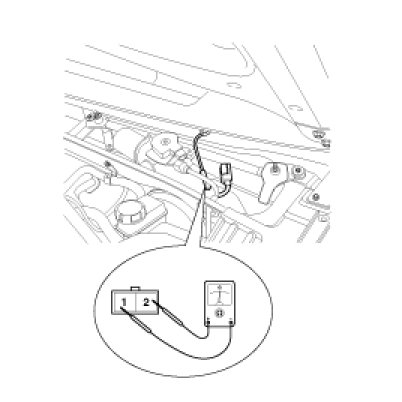

3. Check for continuity between the terminals of deicer lines.

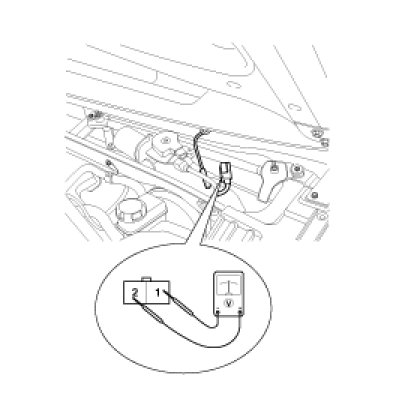

4. Start the engine and the windshield deicer switch ON, then measure the voltage between the terminals of harness side deicer connector.

OK: approx. Battery voltage
