Ignition Switch: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

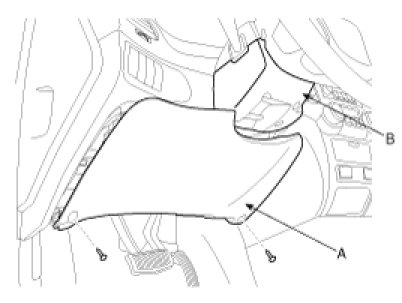

2. Remove the driver lower crash pad panel (A) and shroud lower panel (B).

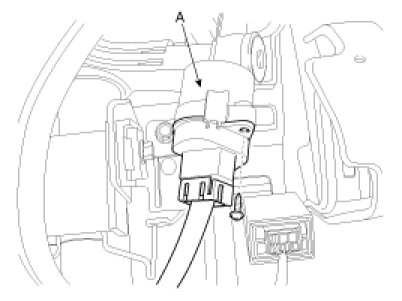

3. Disconnect the 6P connector (A).




4. Remove the steering column shaft.

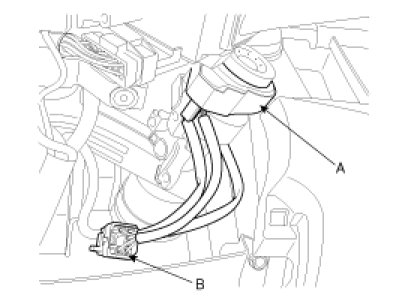

5. Remove the key warning switch and key illumination lamp (A) after loosening the screws and disconnecting the 6P connector (B).

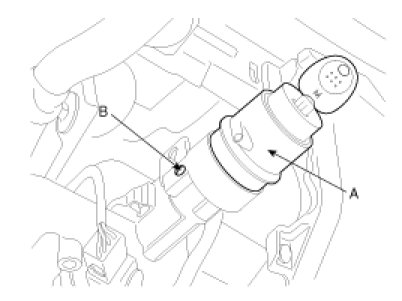

6. Remove the key lock cylinder (A) after pushing lock pin (B) with key ACC if necessary.




7. Installation is the reverse of removal procedure.

INSPECTION




1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
2. Check for continuity between the terminals.
3. If continuity is not specified, replace the switch.
