Seat Belt: Service and Repair

REPLACEMENT

FRONT SEAT BELT REPLACEMENT

CAUTION:
- When installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first.
A. Front seat assembly.
B. Front and rear door scuff trim.

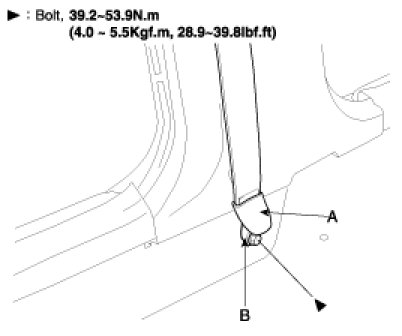

2. After raise the lower anchor cover (A), loosen the lower anchor mounting bolt (B).




3. Remove the center pillar lower trim.
4. Remove the center pillar upper trim.

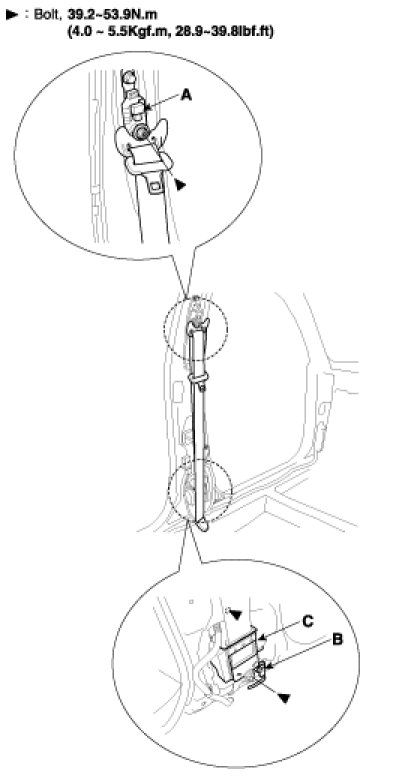

5. Remove the upper anchor (A).
6. After disconnecting the pretensioner connector lock pin, remove the connector (B), Loosen the mounting bolt, then remove the pretensioner (C).




7. Installation is the reverse of removal.

REAR SEAT BELT RELACEMENT

CAUTION:
- When installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first.
A. Rear seat assembly.
B. Front and rear door scuff trim.
C. Rear filler trim.

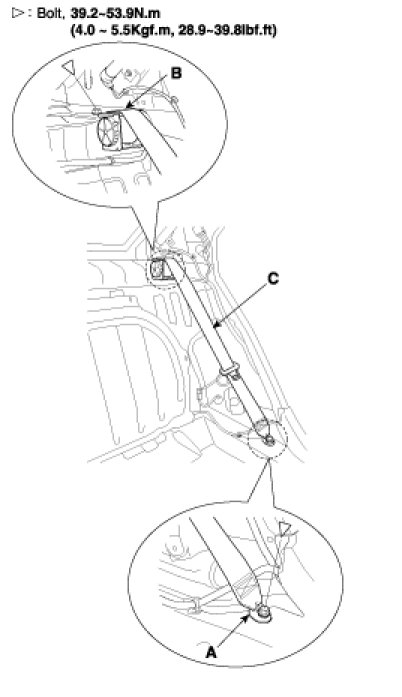

2. Remove the lower anchor (A).
3. Remove the package tray trim.
4. After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).




5. Installation is the reverse of removal.
