Restraints and Safety Systems: Locations
COMPONENTS

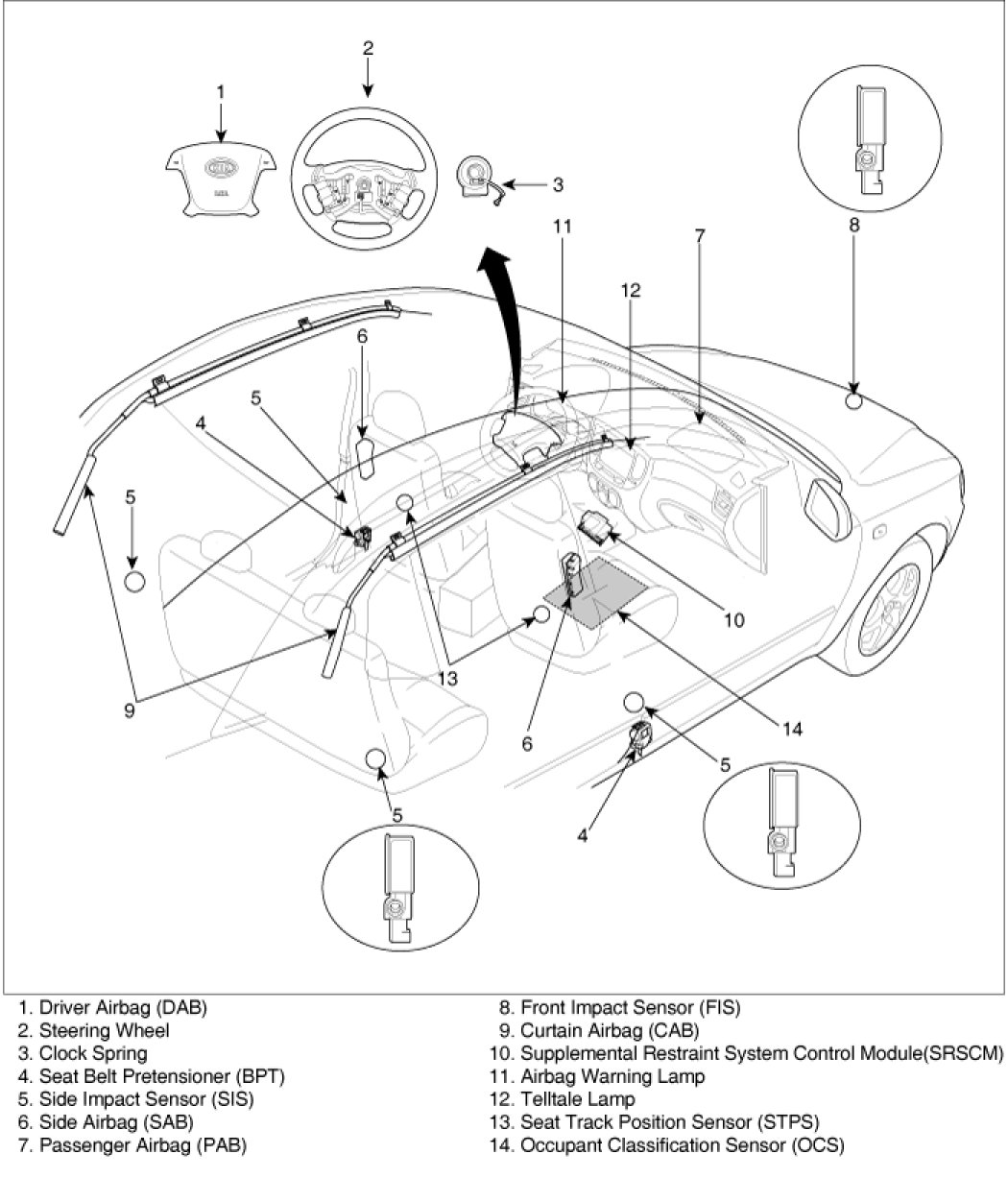

COMPONENTS LOCATION

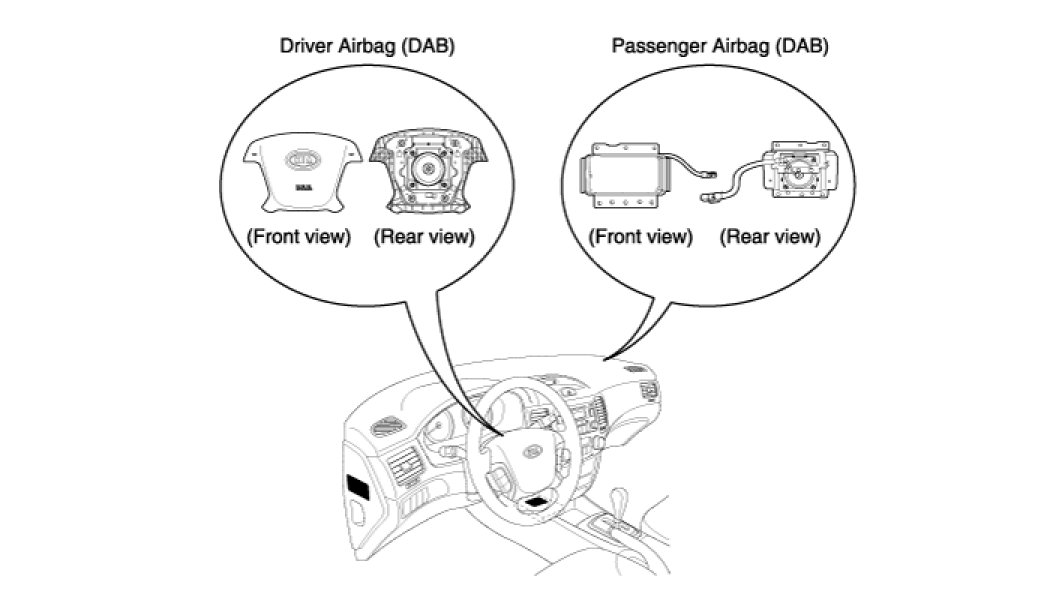

DRIVER AIRBAG (DAB) / PASSENGER AIRBAG (PAB)

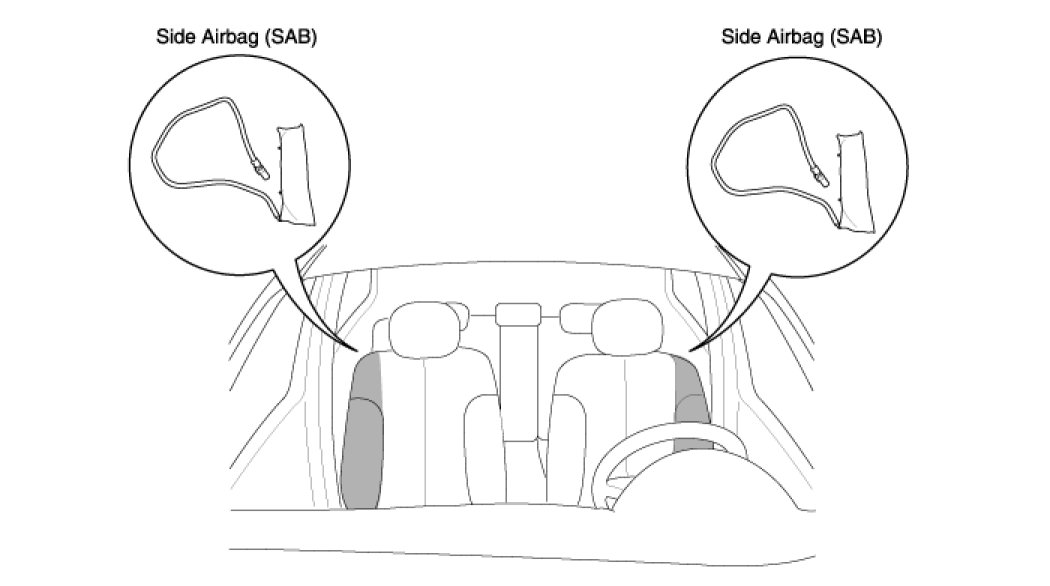

SIDE AIRBAG (SAB)
CURTAIN AIRBAG (CAB)

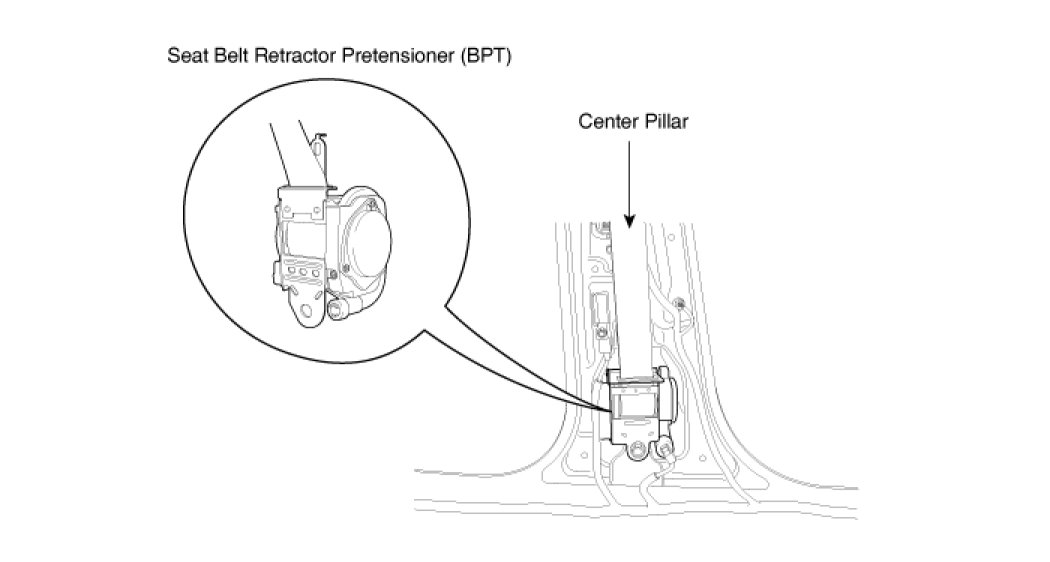

SEAT BELT RETRACTOR PRETENSIONER (BPT)

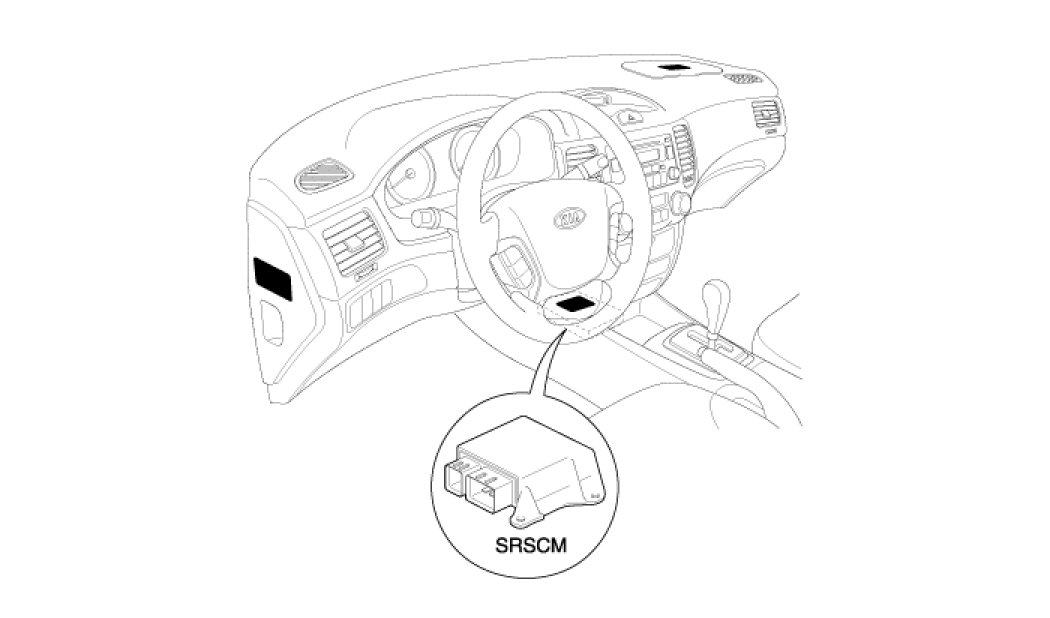

SUPPLEMENTAL RESTRAINT SYSTEM CONTROL MODULE (SRSCM)

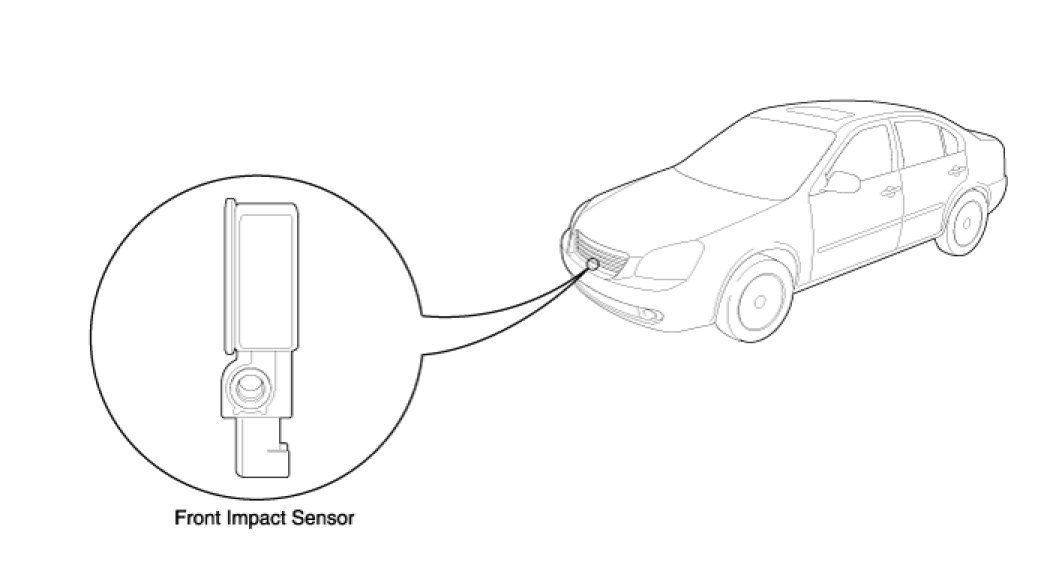

FRONT IMPACT SENSOR (FIS)

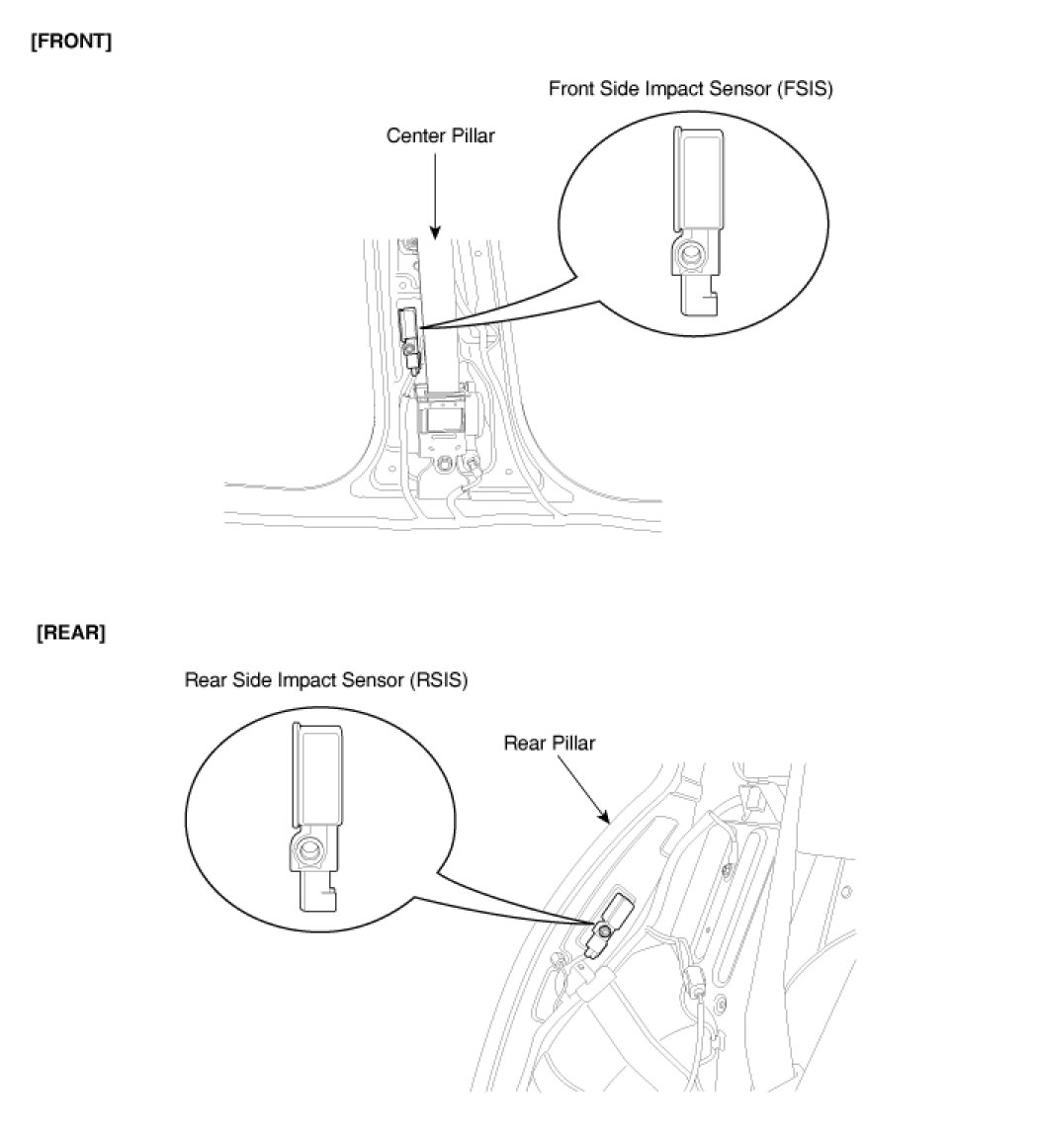

SIDE IMPACT SENSOR (SIS)
