Kia
>>
2008
>>
Optima V6-2.7L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
CIRCUIT DIAGRAM

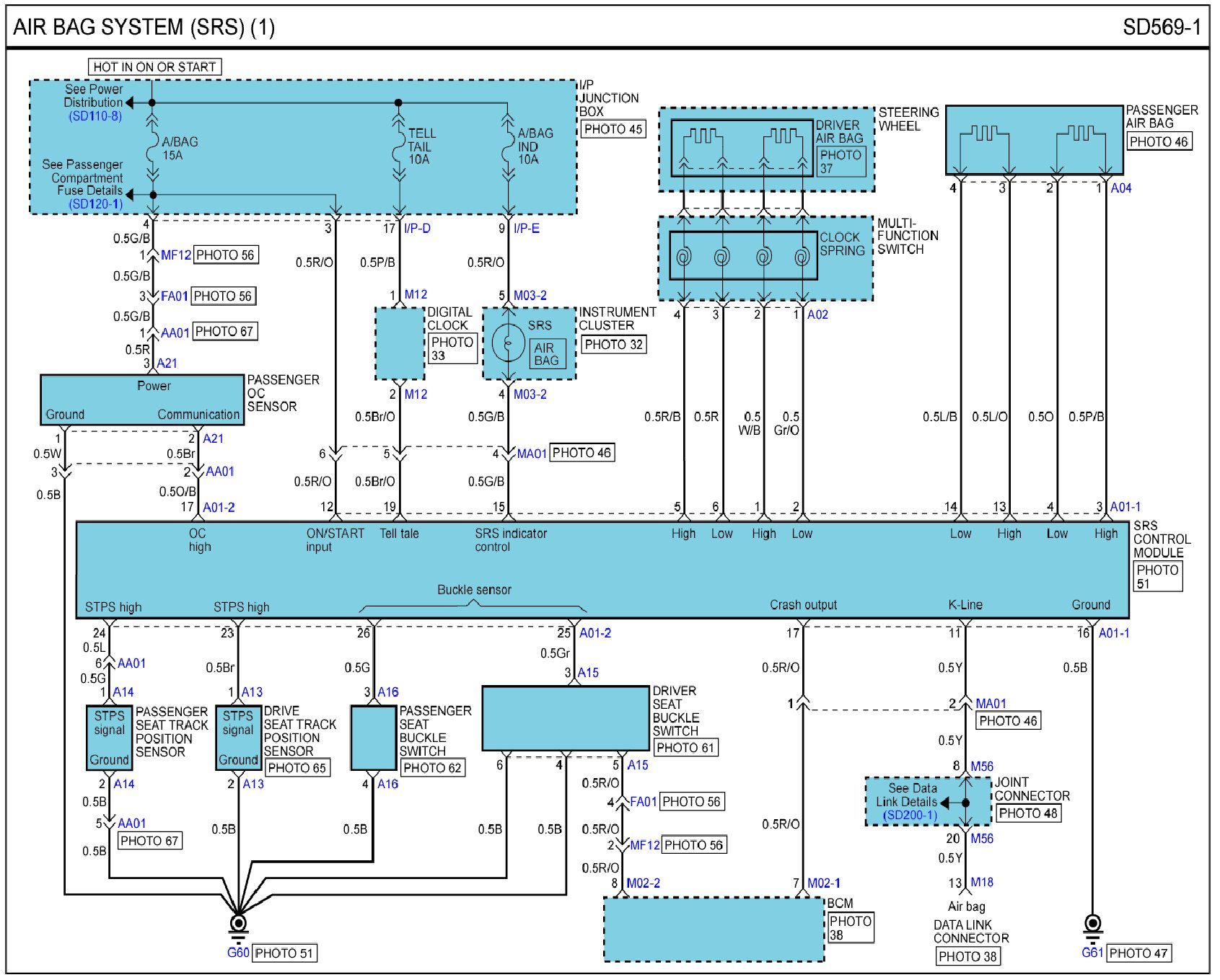

Air Bag System (SRS) (1):

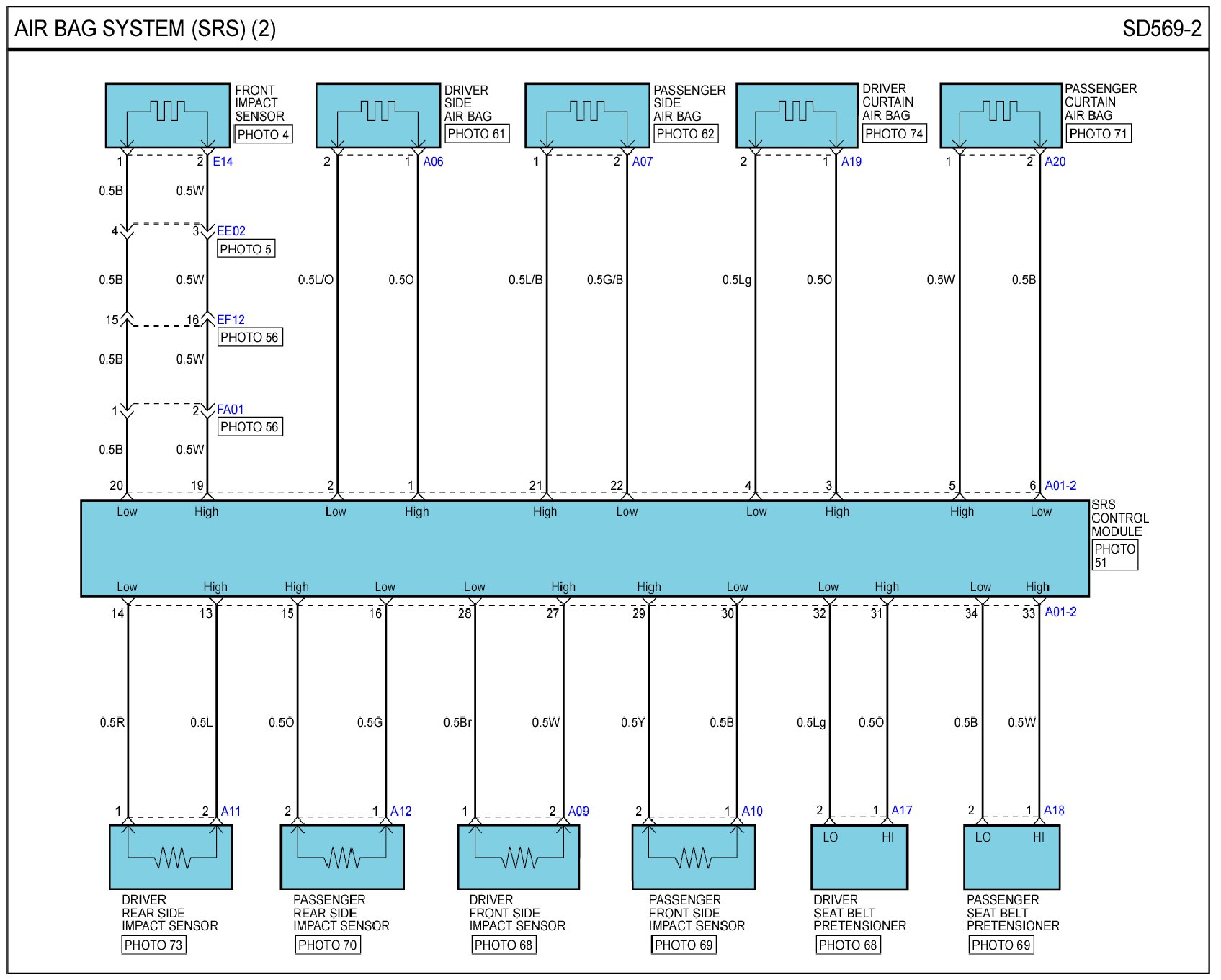

Air Bag System (SRS) (2):

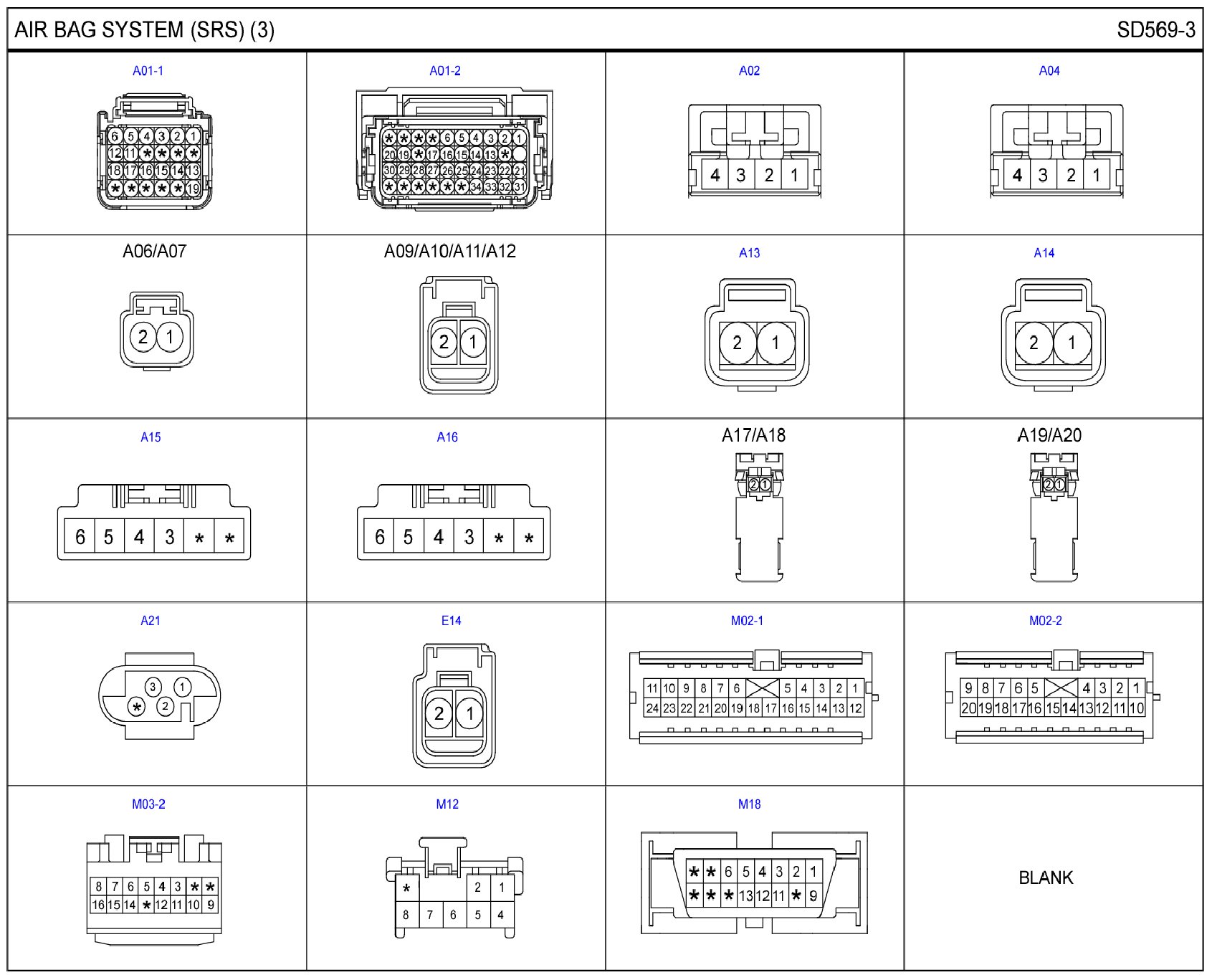

Air Bag System (SRS) Connector Pin Outs:
