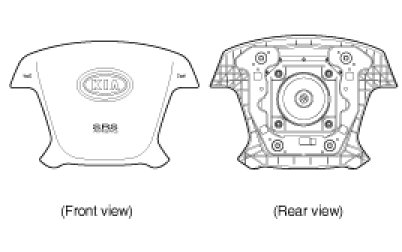

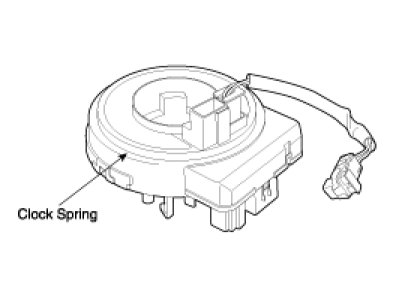

Driver Airbag (DAB) Module and Clock Spring

REMOVAL

1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

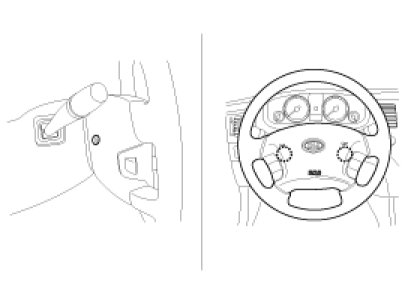

2. Remove the airbag module mounting bolts(2EA).

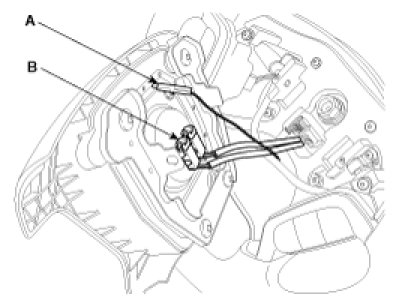

3. Disconnect the horn connector(A).




4. Release the connector locking pin, then disconnect the driver airbag module connector(B).

CAUTION:
The removed airbag module should be stored in a clean, dry place with the pad cover face up.

5. Remove the steering wheel and steering wheel column cover.

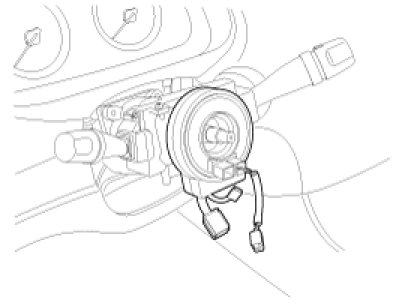

6. Disconnect the clock spring and horn connector, then remove the clock spring.






INSTALLATION

1. Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.




2. Remove the ignition key from the vehicle.
3. Connect the clock spring harness connector and horn harness connector to the clock spring.
4. Set the clock spring on neutral position and after turning the front wheels to the straight-ahead position, install the clock spring.
5. Install the steering wheel column cover and the steering wheel.
6. Connect the Driver Airbag (DAB) module connector and horn connector, then install the Driver Airbag (DAB) module on the steering wheel.
7. Secure the Driver Airbag (DAB) with the new mounting bolts.

Tightening torque (DAB Mounting Bolt)
: 0.8 - 1.1 kgf.m (7.9 - 10.8 Nm, 5.8 - 8.0 lb.ft)


8. Connect the battery negative cable.
9. After installing the airbag, confirm proper system operation:
A. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
B. Make sure horn button works.

INSPECTION

Driver Airbag (DAB)
If any improper parts are found during the following inspection, replace the airbag module with a new one.

CAUTION:
Never attempt to measure the circuit resistance of the airbag module (squib) with an ohmmeter. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.

1. Check pad cover for dents, cracks or deformities.
2. Check the airbag module for denting, cracking or deformation.
3. Check hooks and connectors for damage, terminals for deformities, and harness for binds.
4. Check airbag inflator case for dents, cracks or deformities.




5. Install the airbag module to the steering wheel to check for fit or alignment with the wheel.

Clockspring
1. If, as a result of the following checks, even one abnormal point is discovered, replace the clock spring with a new one.
2. Check connectors and protective tube for damage, and terminals for deformities.
