Home >> Kia >> 2008 >> Optima V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

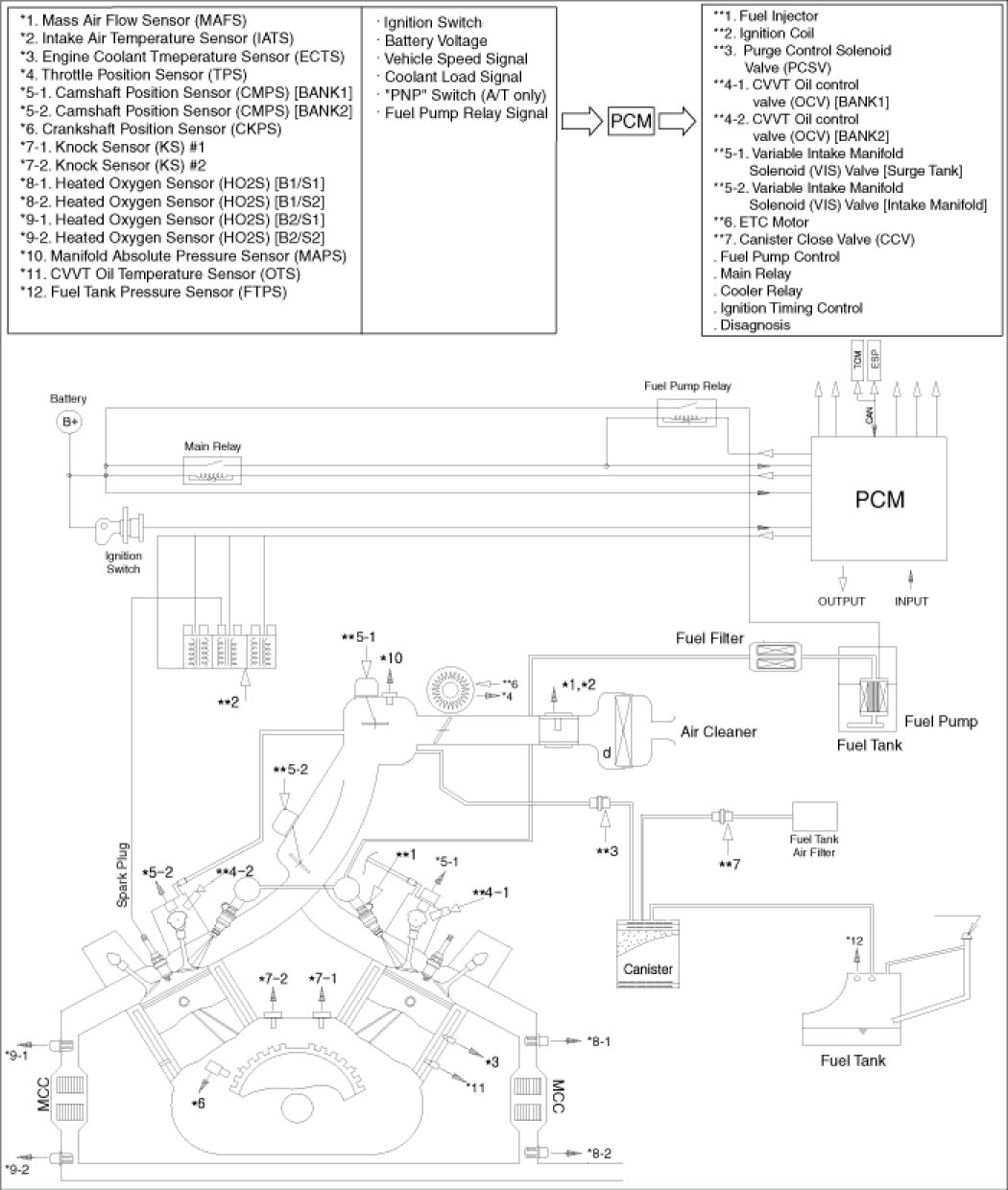

SCHEMATIC DIAGRAM


[2.7 V6]
