Horn: Service and Repair





REPLACEMENT

1. Remove the front bumper..

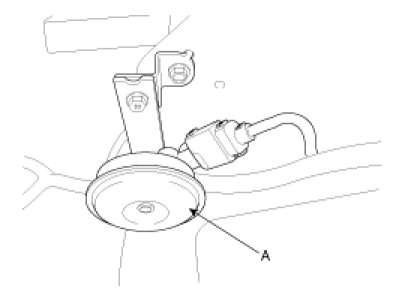

2. Remove the bolt and disconnect the horn connector, then remove the horn (A).




3. Installation is the reverse of removal.
