Headlamp: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

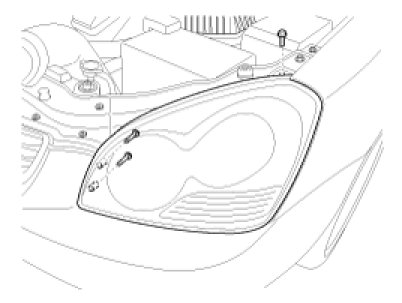

2. Loose the mounting bolts (3EA) of head lamp.




3. Remove the head lamp assembly after disconnecting the lamp connectors.

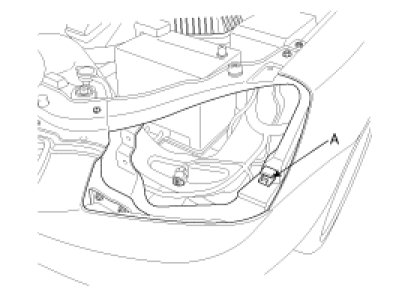

NOTE:
Take care that holding clip (A) is not to be damaged.

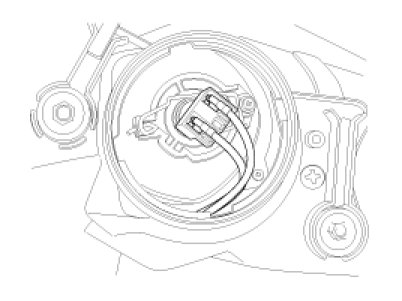

4. Replace the head lamp bulb.




5. Installation is the reverse of removal.
