Room Lamp

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

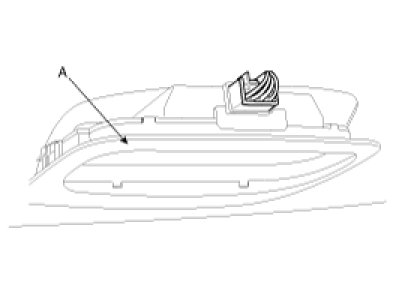

2. Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver then replace the bulb.

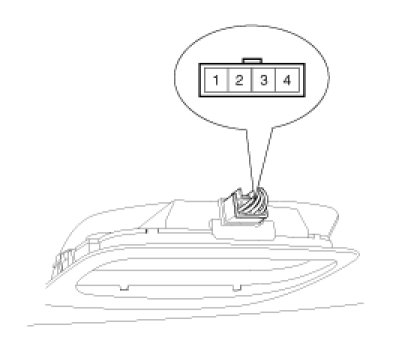

3. Remove the room lamp assembly after removing 2 bolts and disconnecting the 4P connector (Standard type).
Remove the room lamp assembly (A) by using the scraper and then disconnect the 4P connector (Sunroof type).




4. Installation is the reverse of removal.

INSPECTION

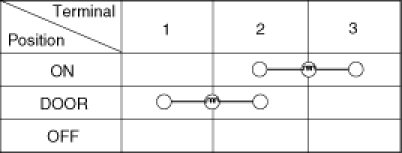

Remove the room lamp assembly then check for continuity between terminals.
