Overhead Console Lamp

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Open the sunglass case cover then remove the 2 screws holding the overhead console.




3. Disconnect the connector (8P) of sunroof switch then remove the overhead console lamp assembly from the headliner.
4. Installation is the reverse of removal.

INSPECTION

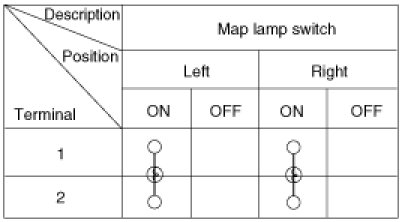

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
