Room Lamp and Replacement

ROOM LAMP AND REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.

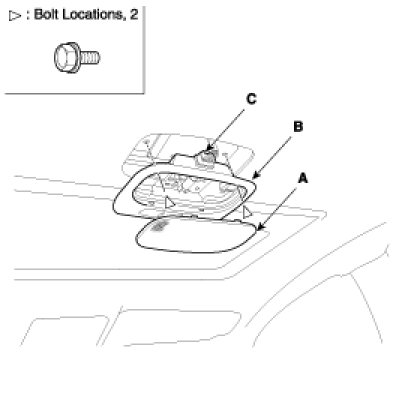

1. Remove the room lamp.
A. Remove the lens (A).
B. Remove the screws.
C. Pull out the room lamp (B).
D. Disconnect the connector (C).




2. Installation is the reverse of removal.
