Automatic A/C

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

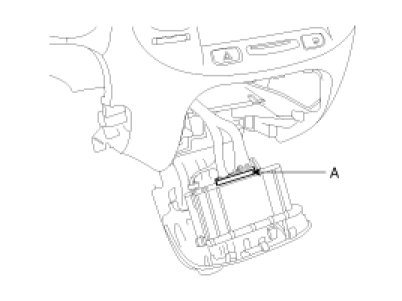

2. Remove the center facia lower panel (A) by pulling it using a screw driver (-).




3. Disconnect the connectors from the center facia.




4. Remove the heater & A/C controller (A) after loosening 4 screws.




5. Installation is the reverse order of removal.
