Exhaust Manifold: Service and Repair

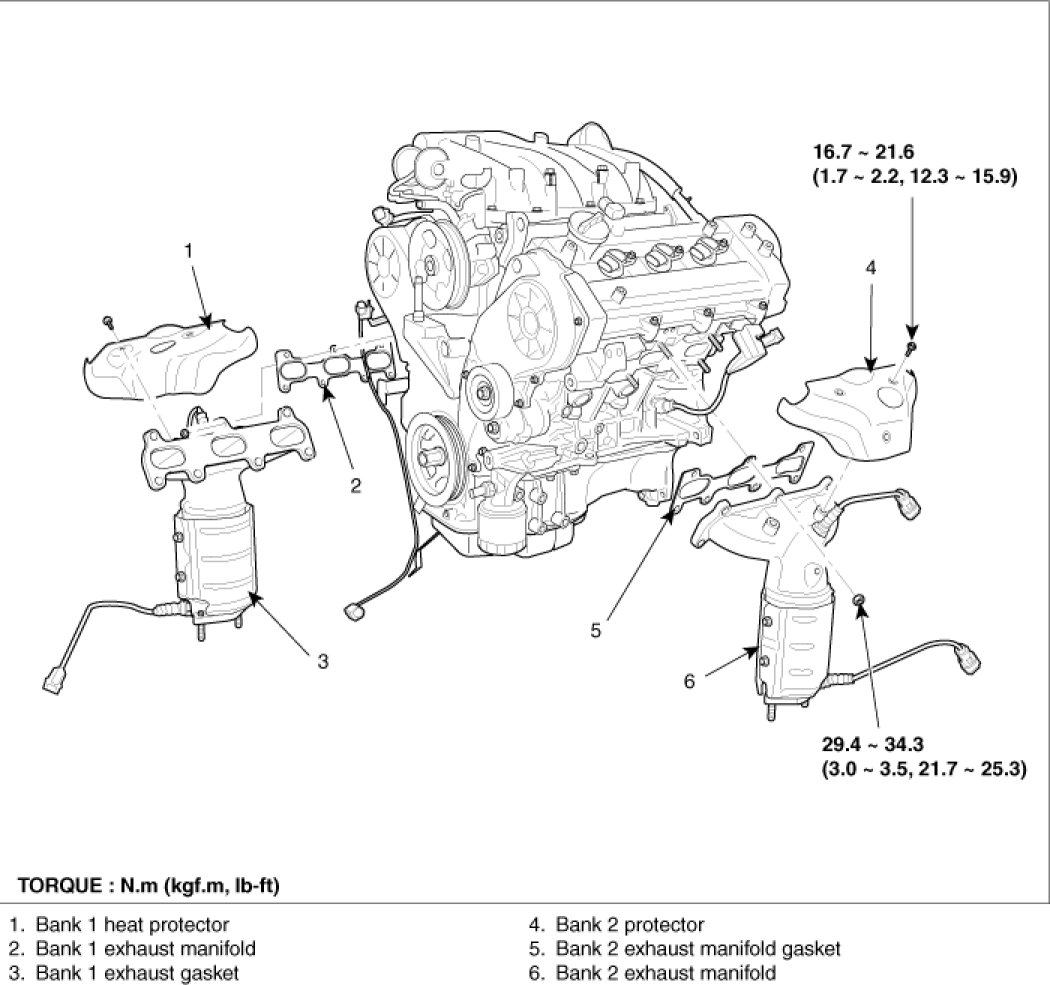

COMPONENTS











REMOVAL

EXHAUST MANIFOLD ASSEMBLY
1. Remove the under cover.
2. Remove the front muffler(A).




3. Disconnect the oxygen sensor connectors(A).








4. Remove the oil level gauge.
5. Remove the heat protector.
6. Remove the exhaust manifold assembly.

INSTALLATION

EXHAUST MANIFOLD ASSEMBLY
1. Install the exhaust manifold assembly with a new gasket.

Tightening torque: 29.4-34.3Nm (3.0-3.5kgf.m, 21.7-25.3lb-ft)

2. Install the heat protector.

Tightening torque: 16.7-21.6Nm (1.7-2.2kgf.m, 12.3-15.9lb-ft)

3. Install the front muffler assembly.

Tightening torque: 39.2-58.8Nm (4.0-6.0kgf.m, 28.9-43.4lb-ft)

4. Connect the oxygen sensor connector.
5. Install the under cover.
