Water Pump: Service and Repair

REMOVAL

WATER PUMP
1. Drain the engine coolant.

WARNING:
System is under high pressure when the engine is hot. To avoid danger of releasing scalding engine coolant, remove the cap only when the engine is cool.

2. Remove drive belt(A).




3. Remove the timing belt.

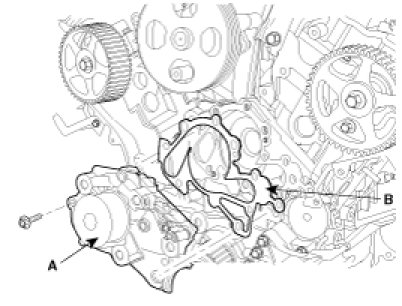

4. Remove the water pump(A) and gasket(B).





CAUTION:
Do not reuse the water pump gasket disassembled.

INSTALLATION

WATER PUMP
1. Install the water pump(A) and a new gasket(B) with the bolts.

Tightening torque: 14.7 - 21.6Nm (1.5 - 2.2kgf.m, 10.8 - 15.9lb-ft)





NOTE:
a. Clean the contacting face before assembling.
b. Do not reuse the water pump gasket disassembled.

2. Install the timing belt.
3. Install drive belt(A).




4. Fill with engine coolant.
5. Start engine and check for leaks.
6. Recheck engine coolant level.

INSPECTION


WATER PUMP
1. Check each part for cracks, damage or wear, and replace the coolant pump assembly if necessary.
2. Check the bearing for damage, abnormal noise and sluggish rotation, and replace the coolant pump assembly if necessary.
3. Check for coolant leakage. If coolant leaks from hole, the seal is defective. Replace the coolant pump assembly.

NOTE:
A small amount of "weeping" from the bleed hole is normal.
