Parking Brake System: Testing and Inspection

Inspection

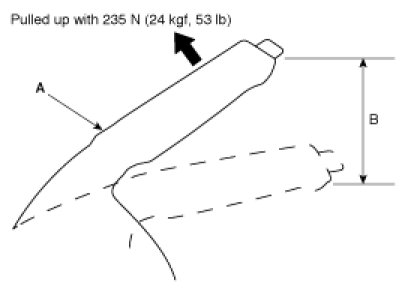

1. Pull the parking brake lever (A) with 235 N (24 kg, 53 lb) force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks (B).

Lever locked clicks: 8 clicks




2. Adjust the parking brake if the lever clicks are out of specification.
