Removal and Replacement

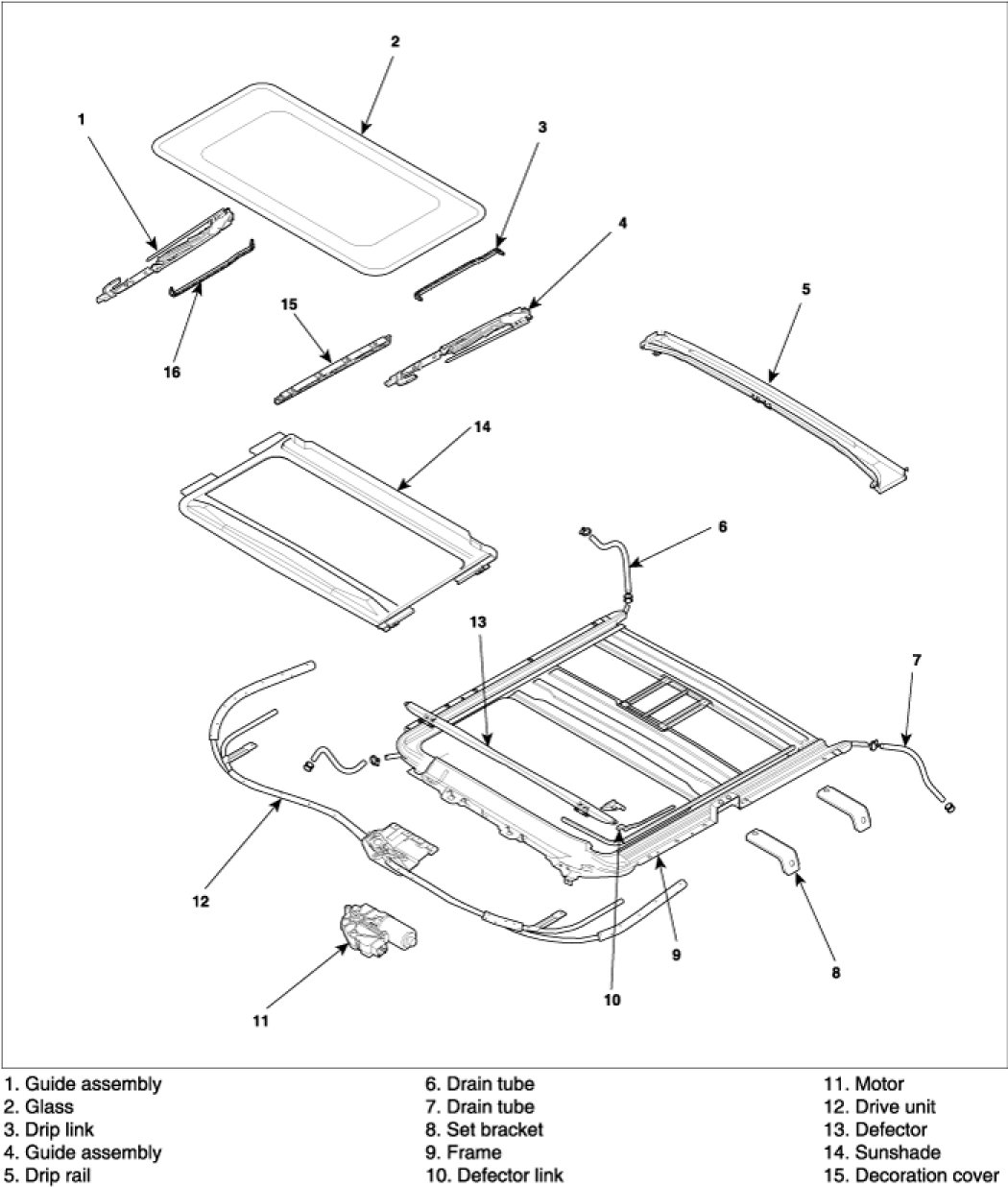

COMPONENTS






REPLACEMENT

GLASS REPLACEMENT

NOTE:
- Put on glove to protect your hands.

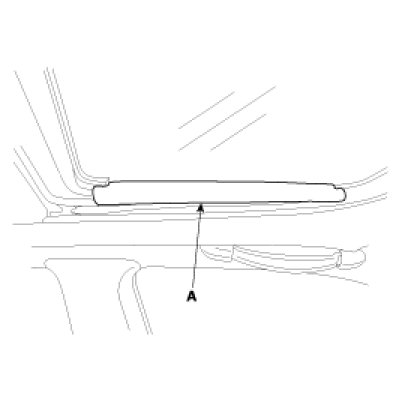

1. Remove both decoration cover (A).

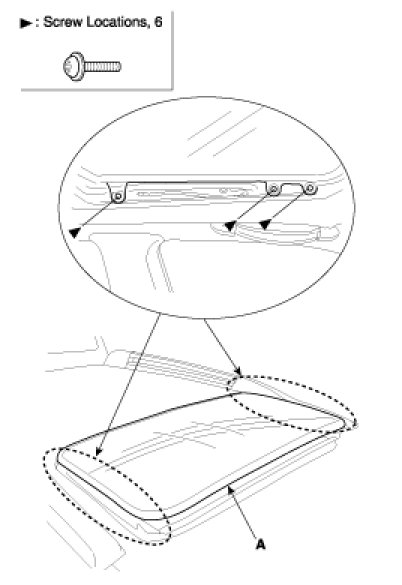

2. Remove the glass (A) by lifting it up.

NOTE:
- Do not damaged the roof panel.




3. Installation is the reverse of removal.

MOTOR REPLACEMENT

NOTE:
- Confirm the position of guide whether it is closed or not when you remove the motor.

1. Remove the over head console.

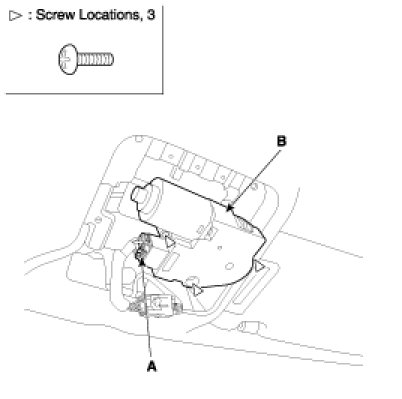

2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).




3. Installation is the reverse of removal.

NOTE:
- Make sure to initialize the motor.

DEFLECTOR REPLACEMENT
1. Open the glass fully.
2. Disconnect the deflector link (A) from the frame (B), and then remove the deflector (C).




3. Installation is the reverse of removal.

SUNROOF ASSEMBLY REPLACEMENT
1. Remove the follows parts.
A. Front and rear door scuff trim.
B. Front and rear pillar trim.
C. Center pillar trim.
D. Headliner.
E. Sunroof glass.

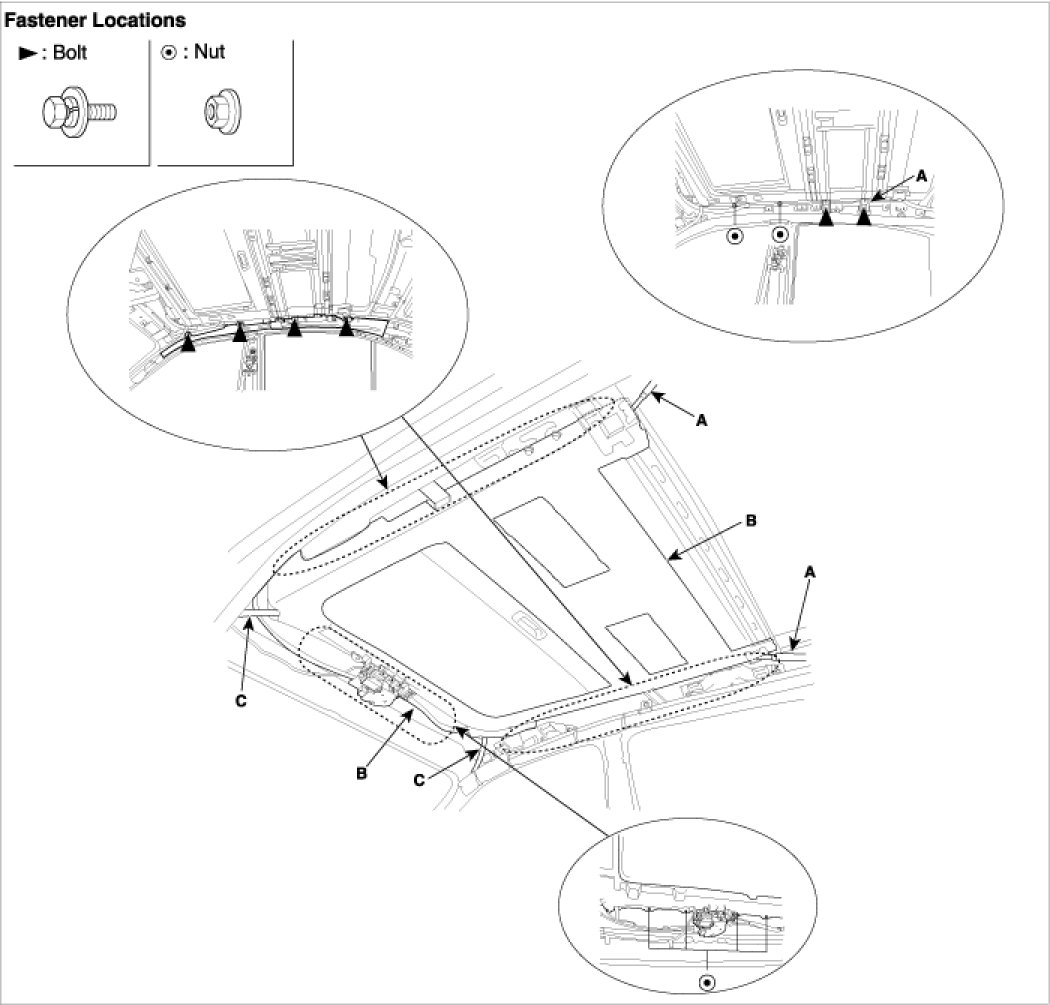

2. Disconnect the drain tubes (C).
3. Remove the bracket (A).
4. After loosening the mounting bolts and nuts, remove the sunroof assembly (B).

NOTE:
- Take care not to scratch the interior trims and other parts.

5. Installation is the reverse of removal.





SUNSHADE AND DRIP RAIL REPLACEMENT
1. Remove the sunroof assembly.

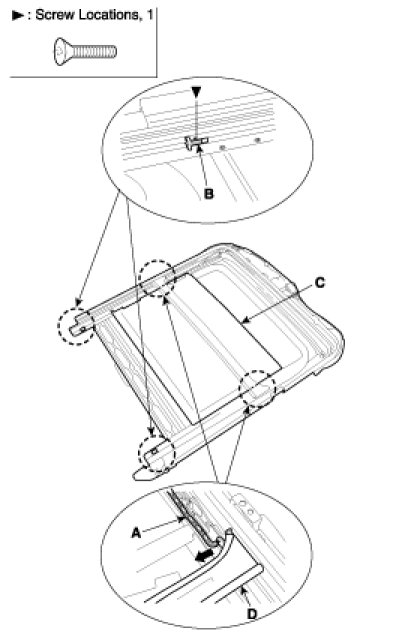

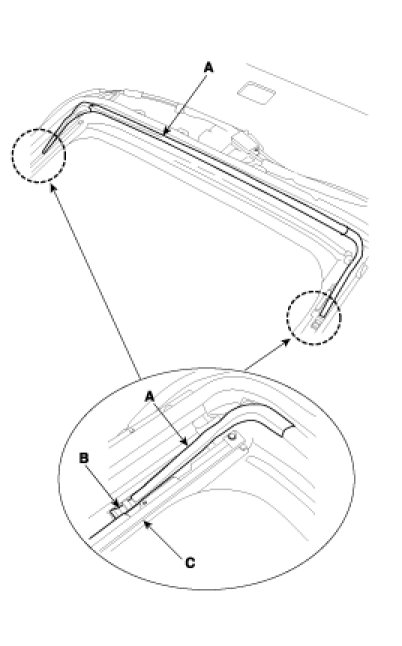

2. Remove the drip link (A) and sunshade stopper (B).
3. Remove the sunshade (C) and drip rail (D).




4. Installation is the reverse of removal.

GUIDE ASSEMBLY REPLACEMENT
1. Remove the sunroof assembly.

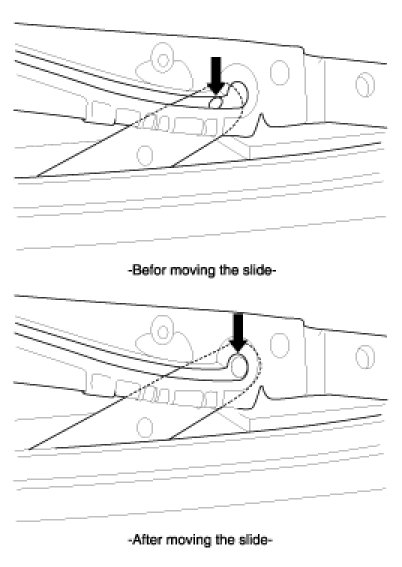

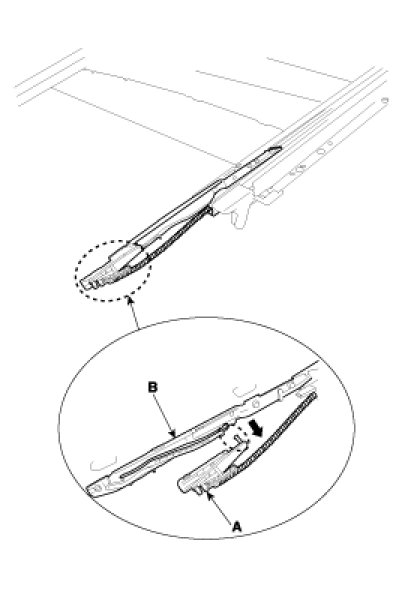

2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.




3. Remove the guide (A) and slide (B).




4. Installation is the reverse of removal.

NOTE:

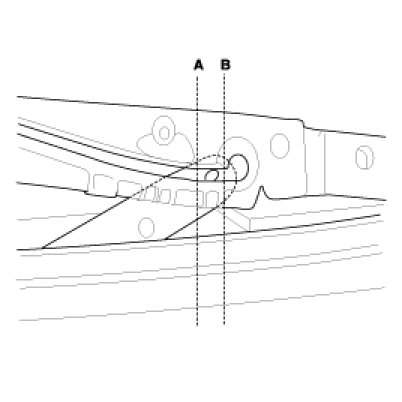

- Make sure to align the slide with the center of "A"and "B"
- Make sure to initialize the motor.





ADJUSTMENT

HOW TO INITIALIZE
1. Check that the glass has been installed.
A. Finished height adjustment.
2. Push the up switch. (Keep on pushing the switch)
A. The slide moved 5mm forward after 15 seconds.




3. After moving the slide 5mm forward, turn OFF the switch and push the UP switch (Keeping on pushing the switch with continuous operation)
A. If the operation above is normal condition, the sunroof opens and closes.
4. When the sunroof is closed completely, turn OFF the UP switch initialize the motor completely.

WHEN TO INITIALIZE THE MOTOR
1. First operation the vehicle after manufacture it.
2. Initial value is erased or damagedbecause of short power electric discharge during operation
3. After using the manual handle.
