Power Door Lock Relay: Testing and Inspection

INSPECTION

1. Disconnect the negative (-) battery terminal.

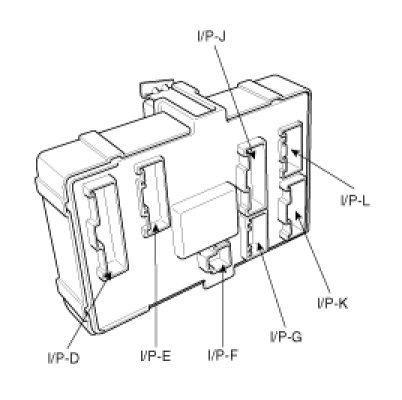

2. Remove the junction box.
3. Check for continuity between the terminals.

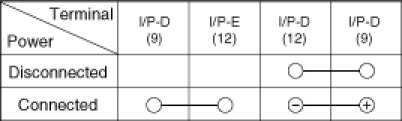

DOOR LOCK
1. There should be continuity between the No.12 and No.9 terminals in the I/P-D connector when power and ground are connected to the No.12 terminal in the I/P-E connector and No.9 terminal in the I/P-D connector.
2. There should be no continuity between the No.12 terminal in the I/P-E connector and No.9 terminal in the I/P-D connector when power is disconnected.

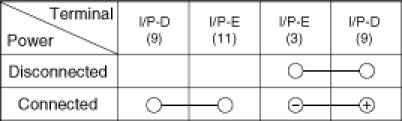

DOOR UNLOCK
1. There should be continuity between the No.3 terminal in the I/P-E connector and No.9 terminal in the I/P-D connector when power and ground are connected to the No.11 terminal in the I/P-E connector and No.9 terminal in the I/P-D connector.
2. There should be no continuity between the No.11 terminal in the I/P-E connector and No.9 terminal in the I/P-D connector when power is disconnected.
