Sun Visor: Service and Repair

SUNVISOR REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.

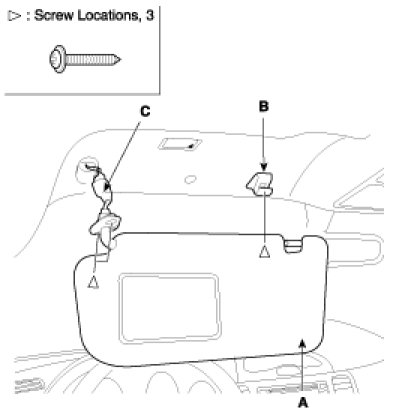

1. Remove the sunvisor (A) and holder (B) from each side.
2. Disconnected the connector (C).




3. Installation is the reverse of removal.
