Fuel Door Release Actuator: Testing and Inspection

INSPECTION

1. Remove the trunk room left trim.

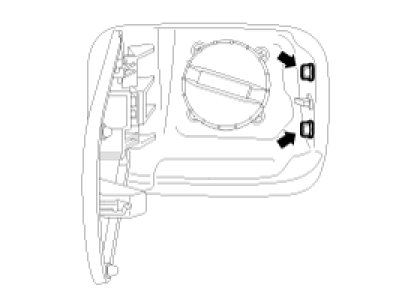

2. Open the fuel filler door and remove the fuel filler door release actuator.

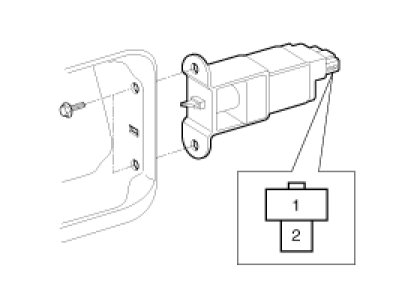

3. Check for continuity between terminal No. 1 and No. 2. If there is no continuity replace the fuel filler door opener.
