Home >> Kia >> 2008 >> Optima V6-2.7L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

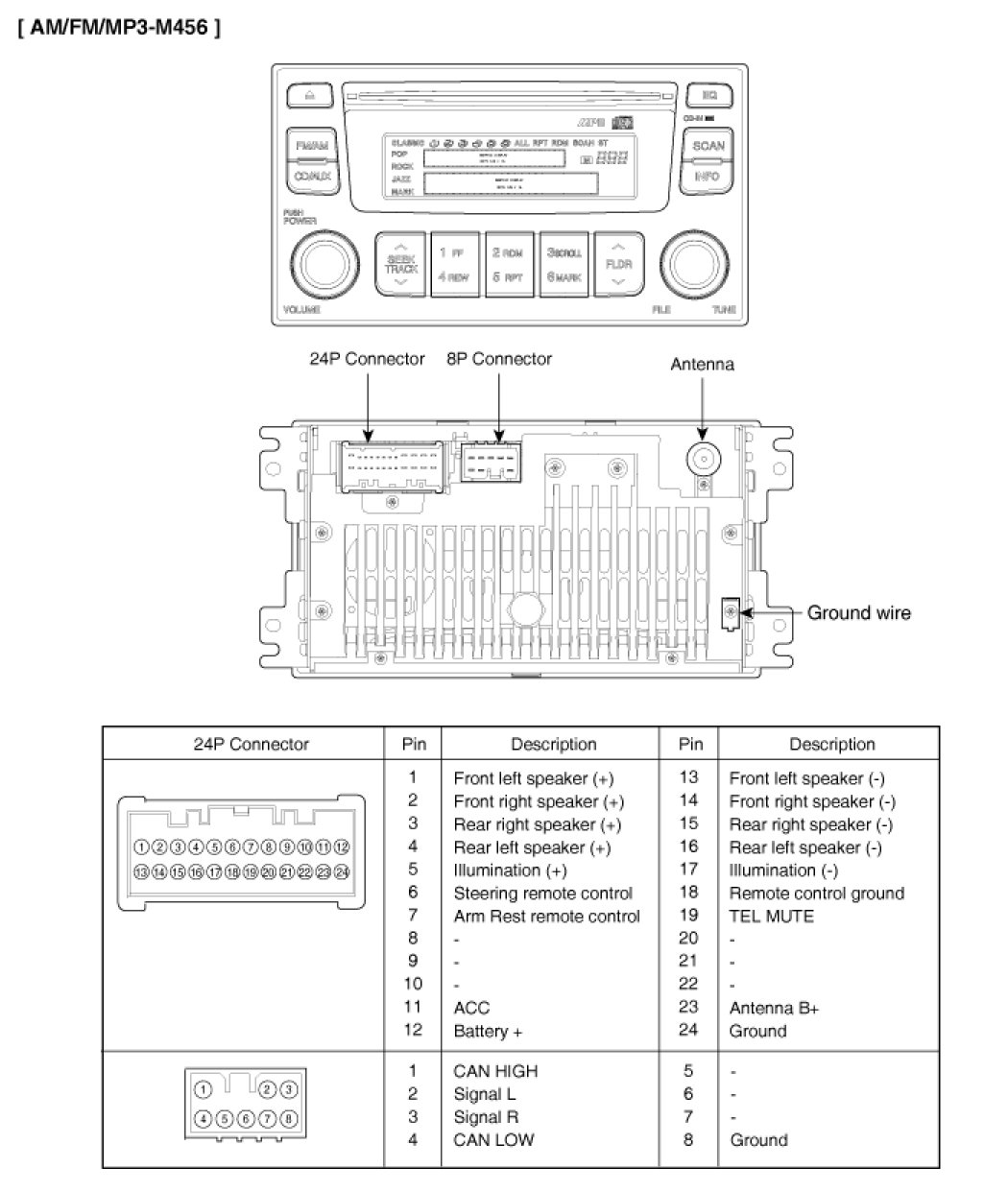

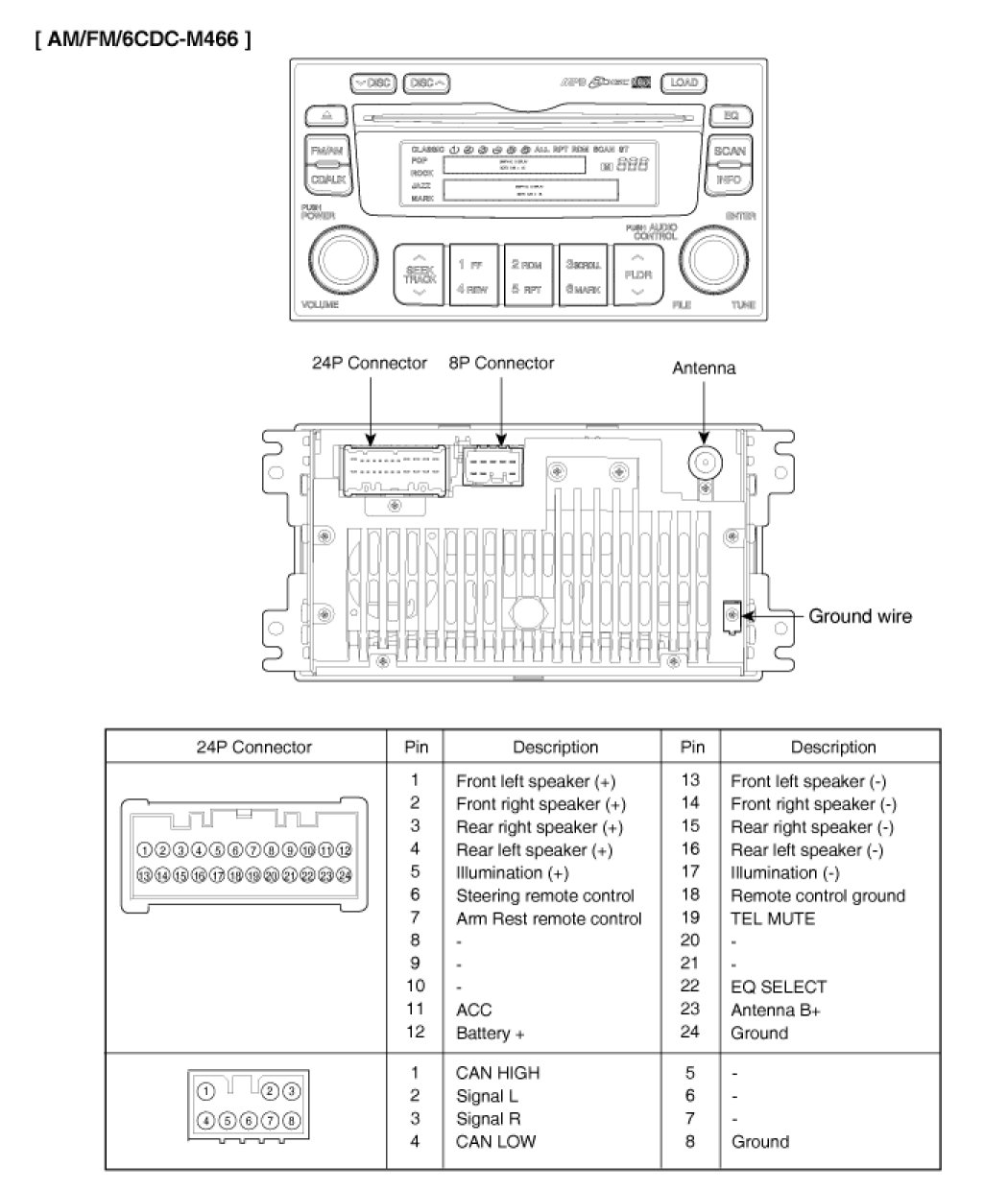

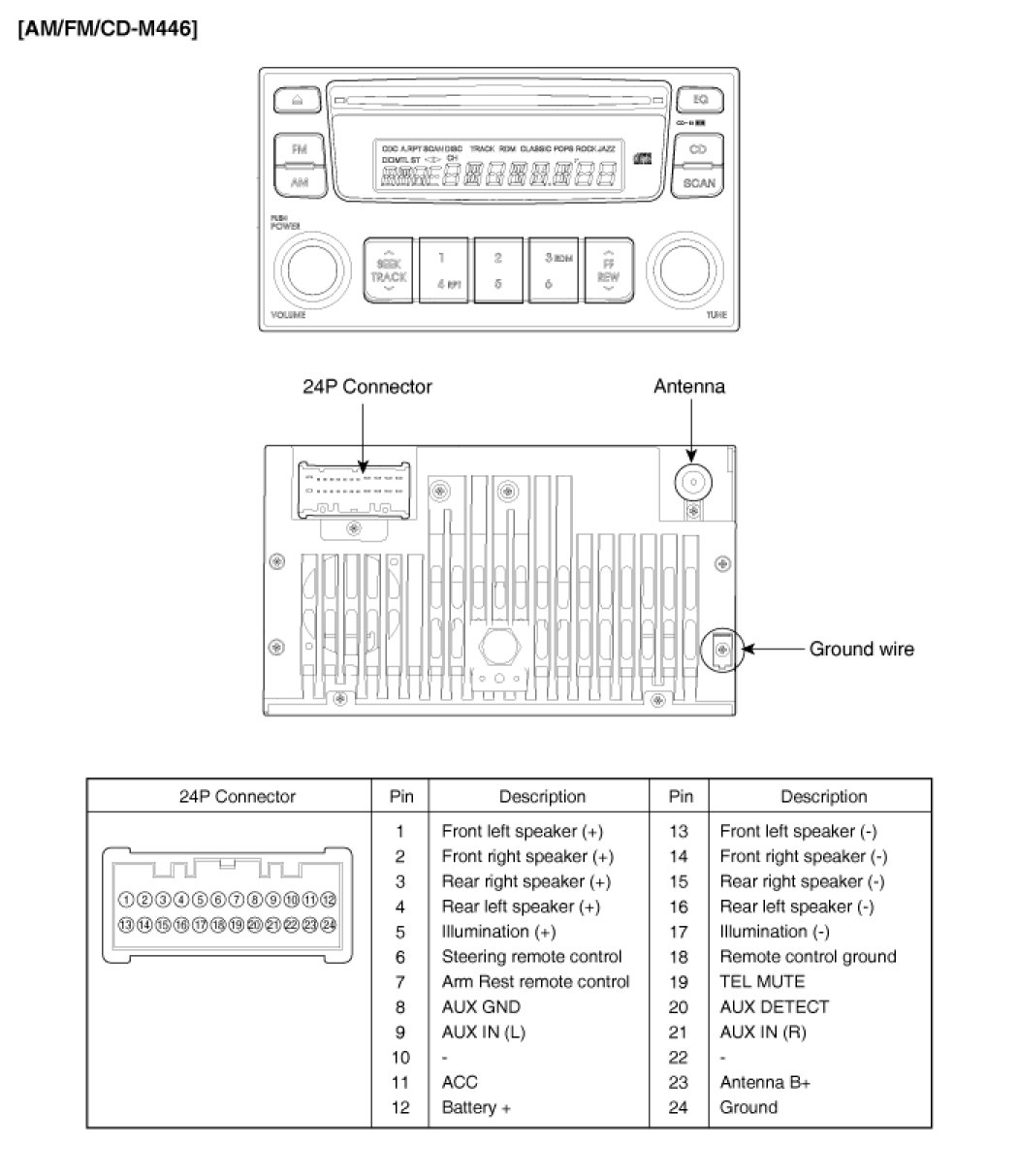

Pinout Values and Diagnostic Parameters





COMPONENT
