P161B

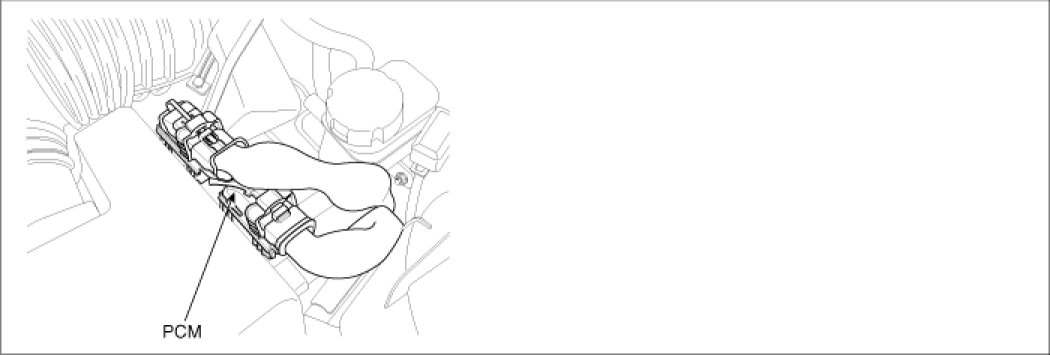

COMPONENT LOCATION
GENERAL DESCRIPTION
Comparing actual torque and desired torque, PCM diagnoses calculated torque state. Actual torque keeps lower than desired torque, PCM checks if actual torque is higher than desired torque. deviding condition into two state, dynamic and steady states, PCM applies different diagnosis logic. Because the responses due to this code is similar to that of MAF control error, checking MAF at first.
DTC DESCRIPTION
PCM checks if actual torque is higher than desired torque. deviding condition into two state, dynamic and steady states. At diagnosis during steady state, if the difference between actual torque and desired torque is higher than the threshold value, an error is recognized. And at dynamic diagnosis, desired torque of fly wheel and actual dynamic torque is compared. If ETS is on Power Management Mode, total engine torquemodulated by PCM is used instead of total actual engine torque. MIL(Malfunction Indicatin Lamp) turns on when the malfunction lasts till 1 driving cycle.

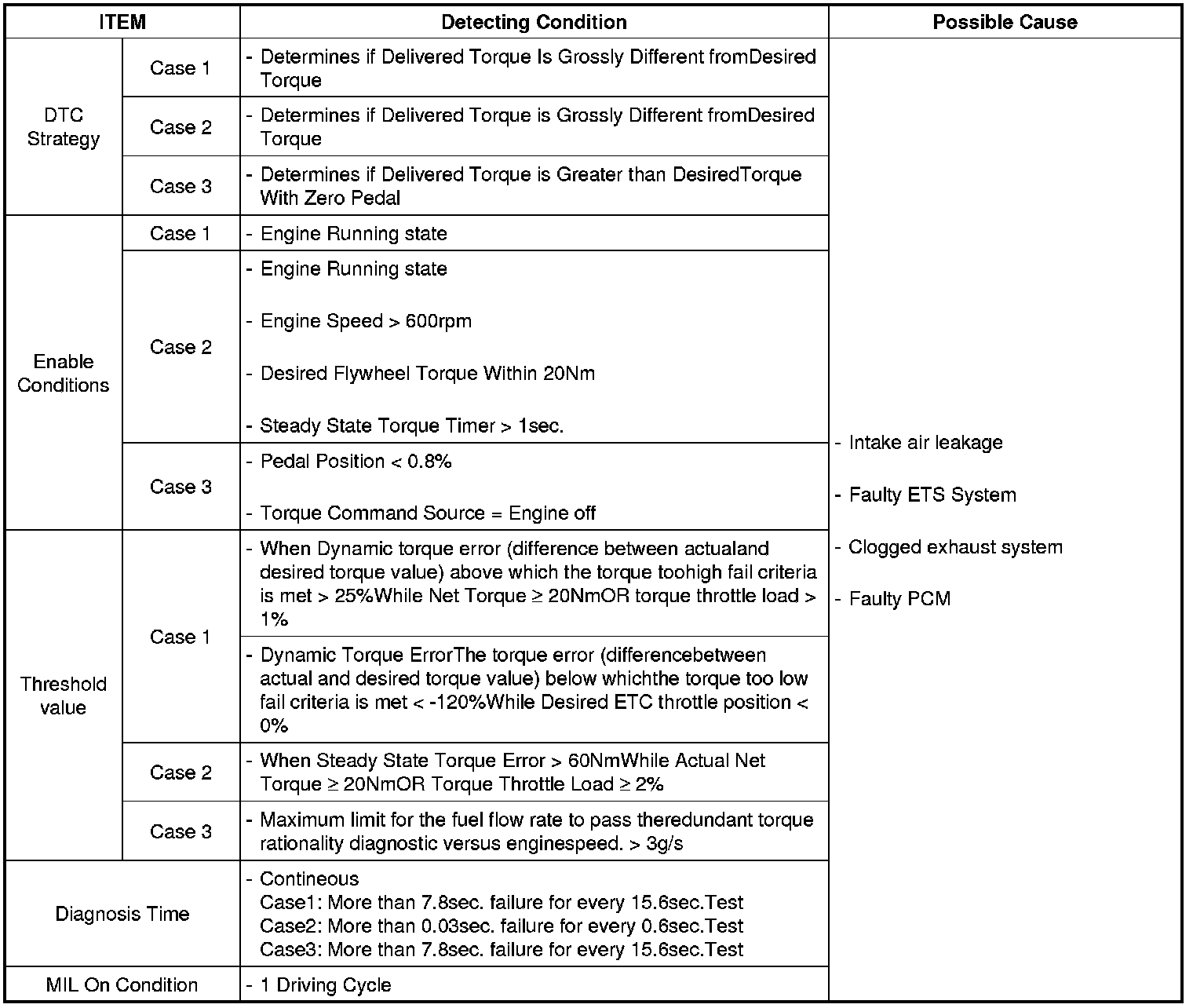

DTC DETECTING CONDITION
MONITOR DTC STATUS
1. Connect scantool to Data Link Connector(DLC).
2. IG "ON".
3. Select "Diagnostic Trouble Codes(DTCs)" mode, and then Press F4(DTAL) to check DTC's information from the DTCs menu
4. Read "DTC Status" parameter.
5. Is parameter displayed "Present fault"?
YES
> Go to "Inspection & Repair" procedure.
NO
> Fault is intermittent, go to "Verification of vehicle Repair" procedure.
TERMINAL AND CONNECTOR INSPECTION
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
> Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
> Go to " System Inspection " procedure.
SYSTEM INSPECTION
1. Check air leakage
(1) Check contamination or installation of Gasket
> Check throttle body gasket
> Check gasket between intake manifold and surge tank.
> Check contamination or clog by foreign material of gasket between intake manifold and injector.
> Check contamination or open stuck resulting from foreign material between surge tank and PCSV.
(2) Is there any air leakage ?
YES
> Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.
NO
> Go to "Check exhaust system for clogging" as follows.
2. Check exhaust system for clogging
(1) Check exhaust system.
> Clogged or broken muffler
> Broken catalyst
(2) Is the exhaust system colgged ?
YES
> Go to "Check throttle valve for stuck" as follows.
NO
> Repair or repalce as necessary and then, go to "Verification of Vehicle Repair" procedure.
3. Check throttle valve for stuck
(1) IG "OFF".
(2) Remove air hose between throttle body and airflow sensor.
(3) Check if throttle valve is sutck by foreign material.
(4) Is the throttle valve normal ?
YES
> Go to "Component Inspection" procedure.
NO
> After getting rid of foreign material, check that throttle valve is normal and check for proper operation. If the problem is corrected,replace ETC and then go to "Verification of Vehicle Repair" procedure.
** Procedure of ETS Initialization
1. Erase the trouble codes on PCM
2. Turn the ignition key off and keep this condition until the main relay is turned off.(It will takes 10sec.)
3. Turn ignition key on more than 1second to record the throttle motor position on the EEPROM
COMPONENT INSPECTION
1. Check resistance of ETS Motor
(1) IG "OFF"
(2) Disconnect ETS motor & TPS connector.
(3) Measure resistance between terminal 5 and 8 of ETS motor & TPS connector.(Component Side)
Specification : Approx. 1.275 - 1.725Ohms@ 23°C(73.4 °F)
(4) Is the measured resistance within specifications ?
YES
> Substitute with a known-good PCM and check for proper operation. If the problem is corrected,replace PCM and then go to "Verification of Vehicle Repair" procedure.
NOTE:
There is a memory reset function on scantool that can erase optional parts automaticallydetected and memorized by PCM.
Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others
NO
> Substitute with a known-good ETC and check for proper operation. If the problem is corrected,replace ETC and then go to "Verification of Vehicle Repair" procedure.
** Procedure of ETS Initialization
1. Erase the trouble codes on PCM
2. Turn the ignition key off and keep this condition until the main relay is turned off.(It will takes 10sec.)
3. Turn ignition key on more than 1second to record the throttle motor position on the EEPROM
VERIFICATION OF VEHICLE REPAIR
After a repair, it is essential to verify that the fault has been corrected.
1. Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code(DTC) which has been diagnosed.
2. Using a Scantool, Clear the DTCs
3. Operate the vehicle within conditions noted in the freeze frame data or enable conditions
4. Monitor that all rediness test have been verified as " Complete "
5. Are any DTCs present ?
YES
> Go to the applicable troubleshoooting procedure.
NO
> System is performing to specification at this time.
