P0650

GENERAL DESCRIPTION

The Malfunction Indicator Lamp (MIL), which is located in the instrument cluster, comes on to notify the driver that there may be a problem with the vehicle and that service is needed. Immediately after the ignition switch turns on, the malfunction indicator lamp is lit to indicate that the MIL operates normally and goes off after starting.

DTC DESCRIPTION

Checking input signal of engine check lamp every 10 sec. under detecting condition, if open, or short to battery or ground is detected for more than 5 sec., PCM sets P0650.

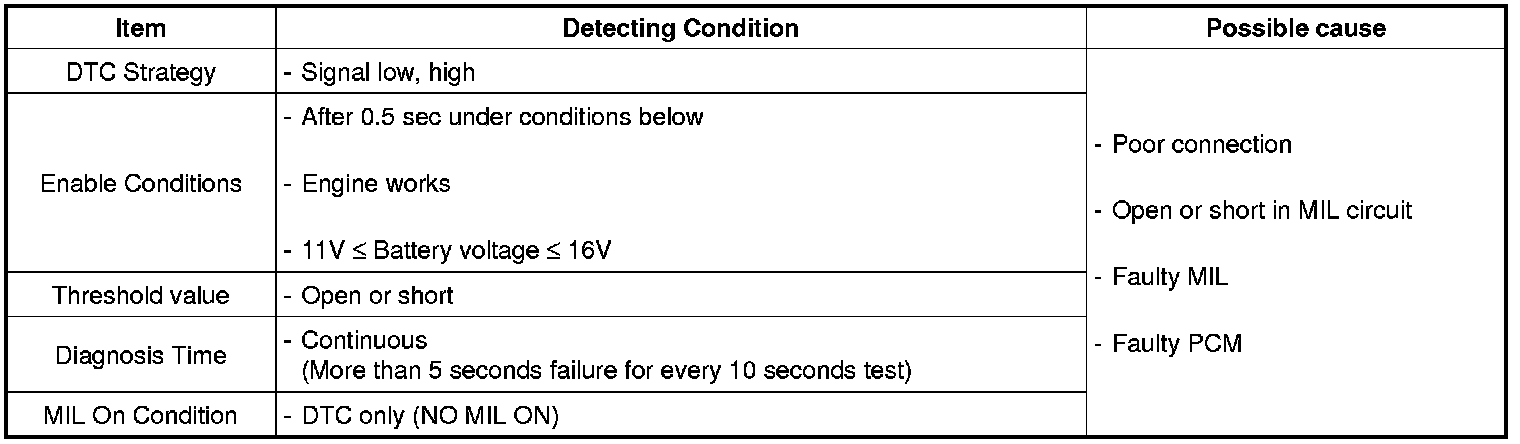

DTC DETECTING CONDITION

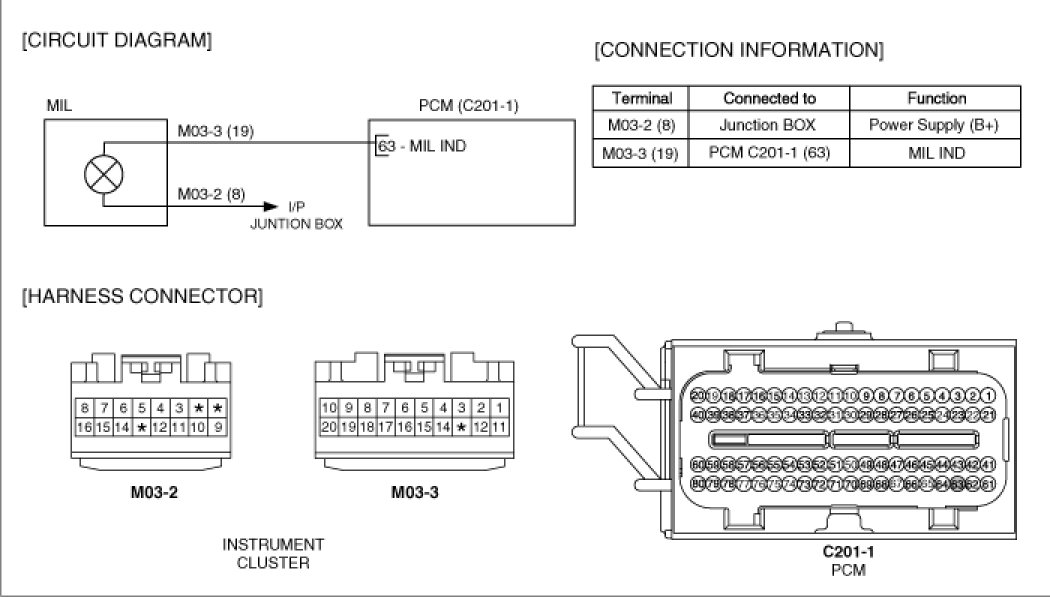

SCHEMATIC DIAGRAM





MONITOR DTC STATUS

1. Check DTC Status
(1) Connect scantool to Data Link Connector(DLC).
(2) IG "ON".
(3) Select "Diagnostic Trouble Codes(DTCs)" mode, and then Press F4(DTAL) to check DTC's information from the DTCs menu
(4) Read "DTC Status" parameter.




(5) Is parameter displayed "Present fault"?
YES
> Go to "Terminal and connector inspection" procedure.
NO
> Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
> Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
> Go to " Power Circuit Inspection " procedure.

POWER CIRCUIT INSPECTION

1. IG "OFF" and disconnect Instrument cluster connector.
2. IG "ON" and ENG "OFF"

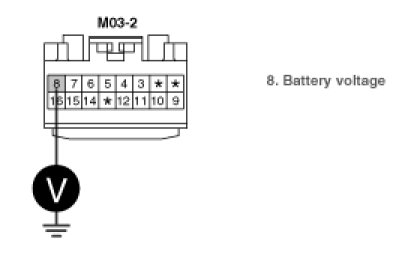

3. Measure voltage between terminal 8 of instrument cluster harness connector and chassis ground.

Specification : Approx. B+





4. Is the measured voltage within specification?
YES
> Go to "Control Circuit Inspection" procedure.
NO
> Check fuse between battery and instrument cluster for open or blown-off.
> Repair open or short to ground in harness, and go to "Verification of Vehicle Repair" procedure.

CONTROL CIRCUIT INSPECTION

1. IG "OFF" and disconnect PCM connector.
2. IG "ON" and ENG "OFF"

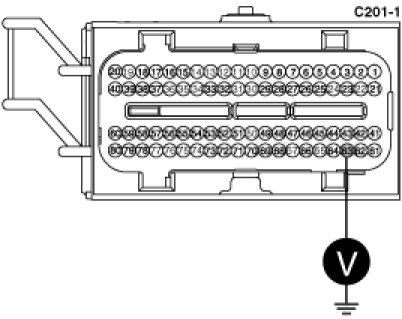

3. Measure voltage between C201-1 (63) of PCM harness connector and chassis ground.

Specification : Approx. B+





4. Is the measured voltage within specification?
YES
> Go to "Component Inspection" procedure.
NO
> Check open in Engine warning lamp's filament.
> Repair open or short to ground in harness, and go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION

1. Check instrument cluster
(1) IG "OFF"
(2) Substitute with a known - good instrument cluster and check for proper operation.
(3) Does it normally operate after replacement?
YES
> Replace instrument cluster and go to "Verification of Vehicle Repair" procedure.
NO
> Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.

NOTE:
There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.
1. Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code(DTC) which has been diagnosed.
2. Using a Scantool, Clear the DTCs
3. Operate the vehicle within conditions noted in the freeze frame data or enable conditions
4. Monitor that all rediness test have been verified as " Complete "
5. Are any DTCs present ?
YES
> Go to the applicable troubleshoooting procedure.
NO
> System is performing to specification at this time.
