P0564

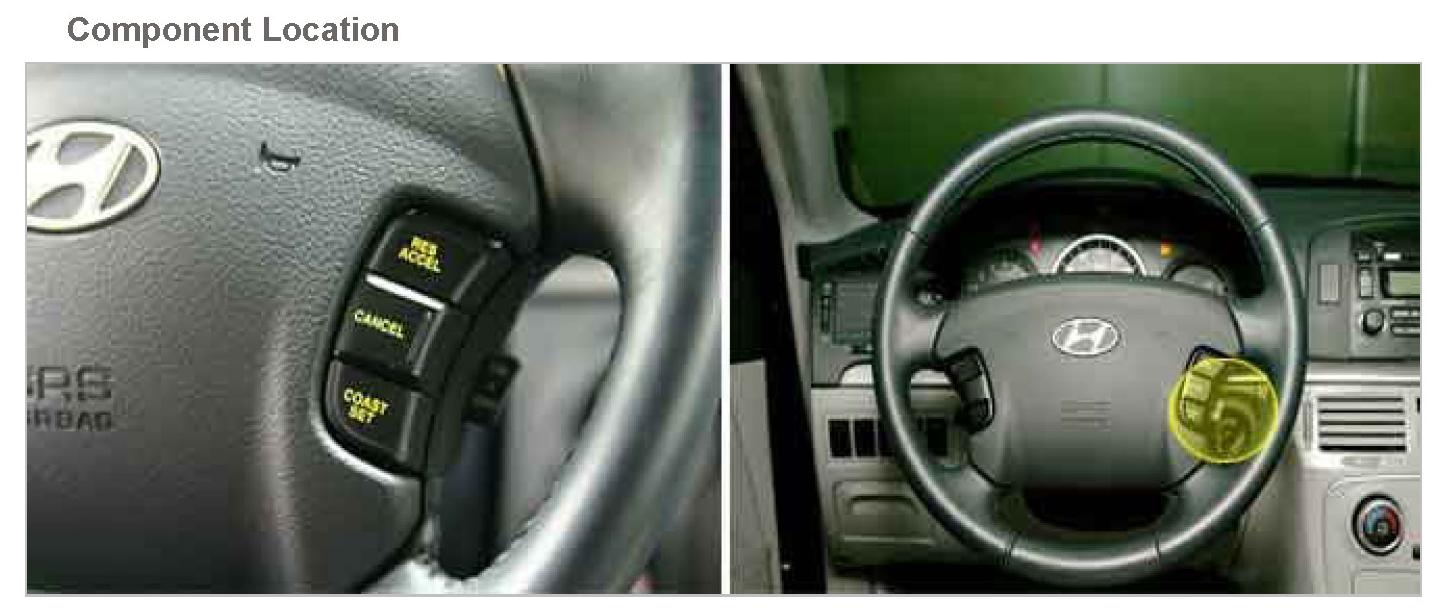

P0564Component Location:
General Description
The cruise control system keeps the vehicle running at a fixed speed until a signal canceling this fixed speed is received. When the main switch is turned on with vehicle in the running mode, the battery voltage is applied to the ECM. When a signal from the control switch is input to the ECM while the vehicle is in state, the ECM controls the ETS motor to make a car go at a steady speed you want. Also, while the system is operating, "CRUISE" indicator lamp in the meter assembly lights up.
DTC Description
If the switch signal's voltage is not within the calibrated ranges when PCM checks the switch signal under detecting condition, PCM sets P0564.

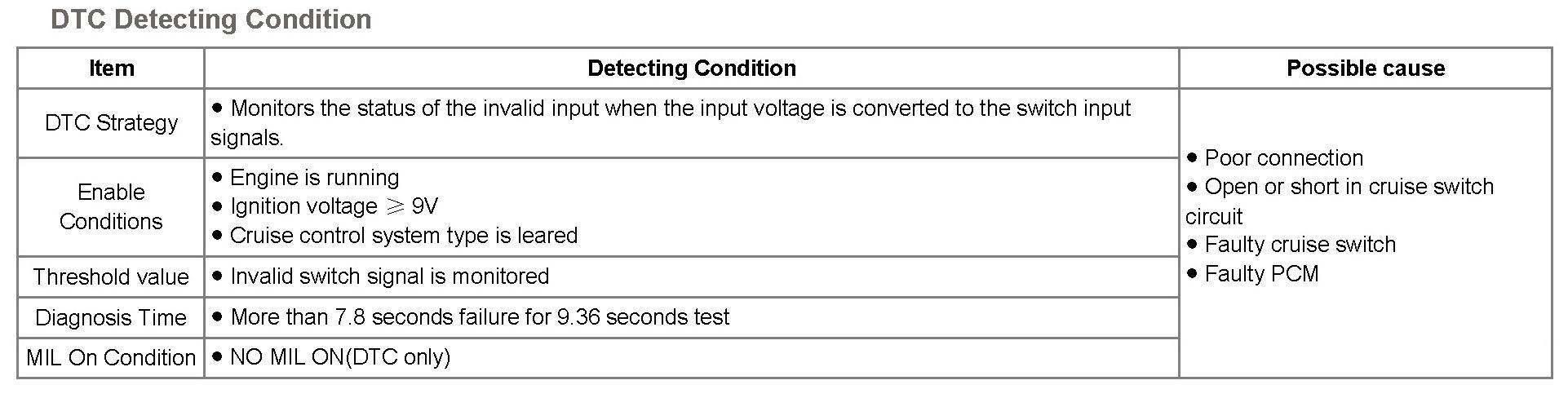

DTC Detecting Condition:
Specification:

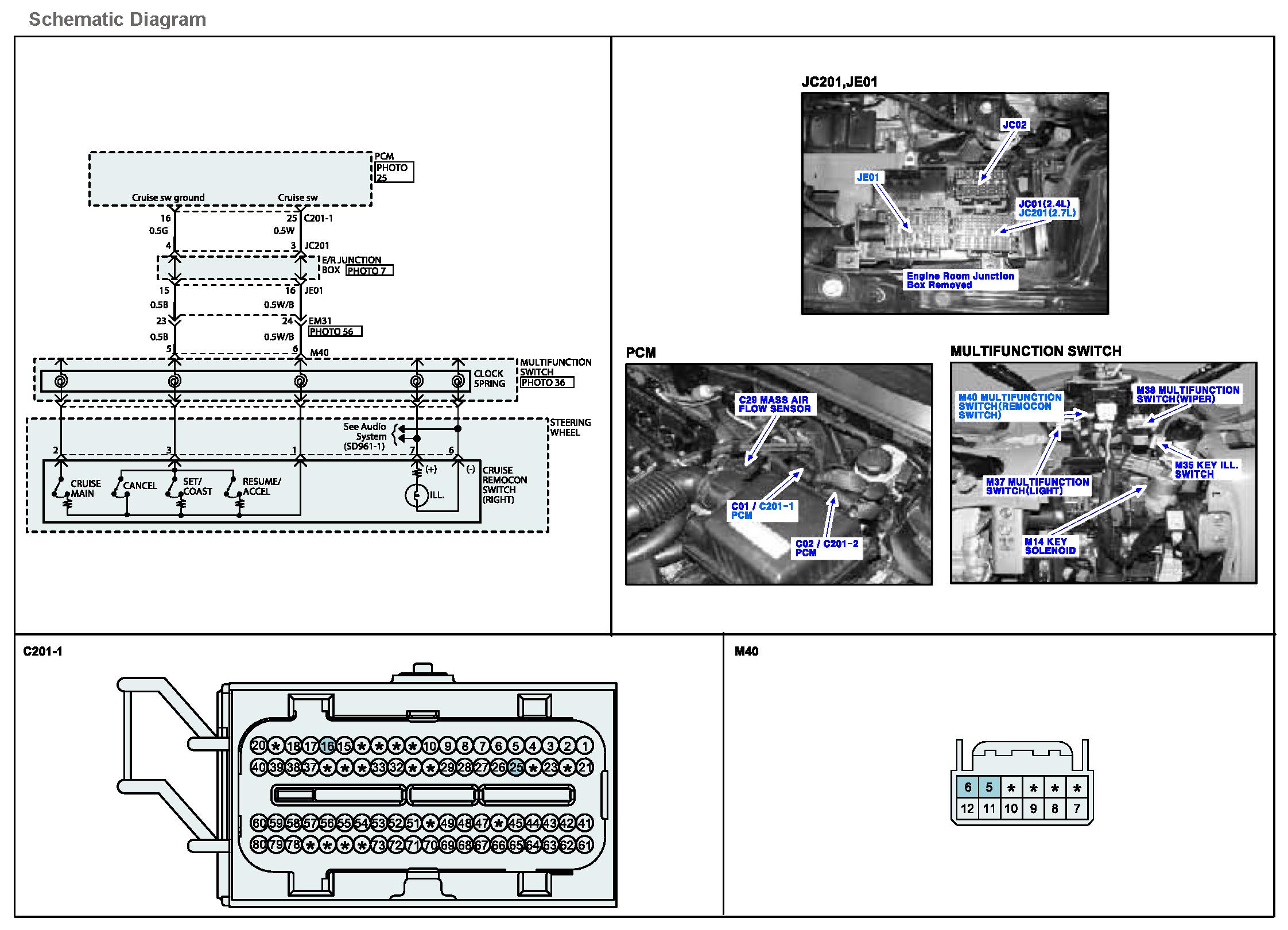

Schematic Diagram:
Monitor DTC Status
1. Connect scantool to Data Link Connector (DLC).
2. IG "ON".

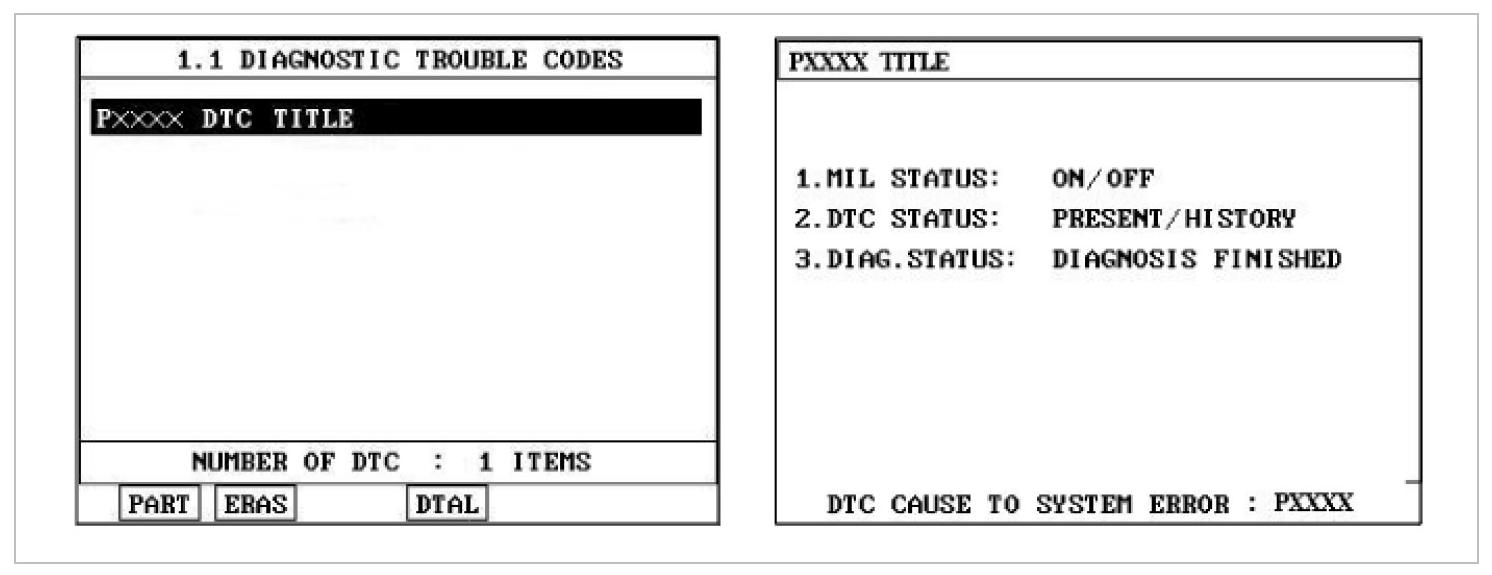

3. Select "Diagnostic Trouble Codes (DTCs)" mode, and then Press F4 (DTAL) to check DTC's information from the DTCs menu
4. Read "DTC Status" parameter.
5. Is parameter displayed "Present fault"?
YES - Go to "Inspection & Repair" procedure.
NO - Fault is intermittent, go to "Verification of vehicle Repair" procedure.
Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES - Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO - Go to "Power Circuit Inspection" procedure.
Power Supply Circuit Inspection
1. IG "OFF" and disconnect Auto cruise switch connector.
2. IG "ON" and ENG "OFF"
3. Measure voltage between terminal 7 of auto cruise switch harness connector and chassis ground.
Specification : Approx. B+
4. Is the measured voltage within specification?
YES - Go to "Signal Circuit Inspection" procedure.
NO - Repair open or short to ground in harness, and go to "Verification of Vehicle Repair" procedure.
Signal Circuit Inspection
1. Check voltage
1. IG "OFF" and disconnect auto cruise switch connector.
2. IG "ON" and ENG "OFF"

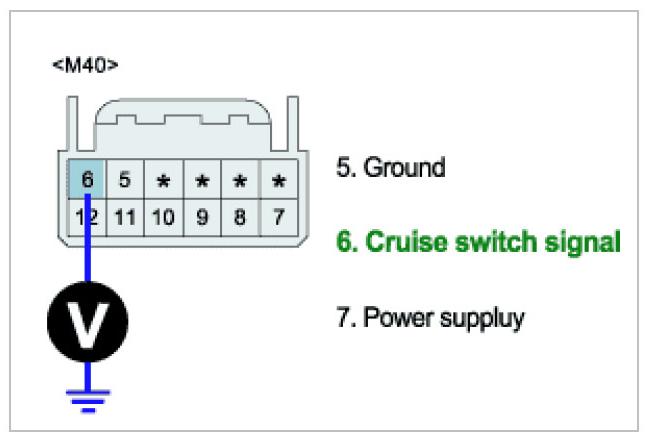

3. Measure voltage between terminal 6 of auto cruise switch harness connector and chassis ground.
Specification : Approx. 5 V
4. Is the measured voltage within specification?
YES - Go to "Component Inspection" procedure. NO Go to "Check short in harness" as follows.
2. Check short in harness
1. IG "OFF" and disconnect auto cruise switch connector and PCM connector.

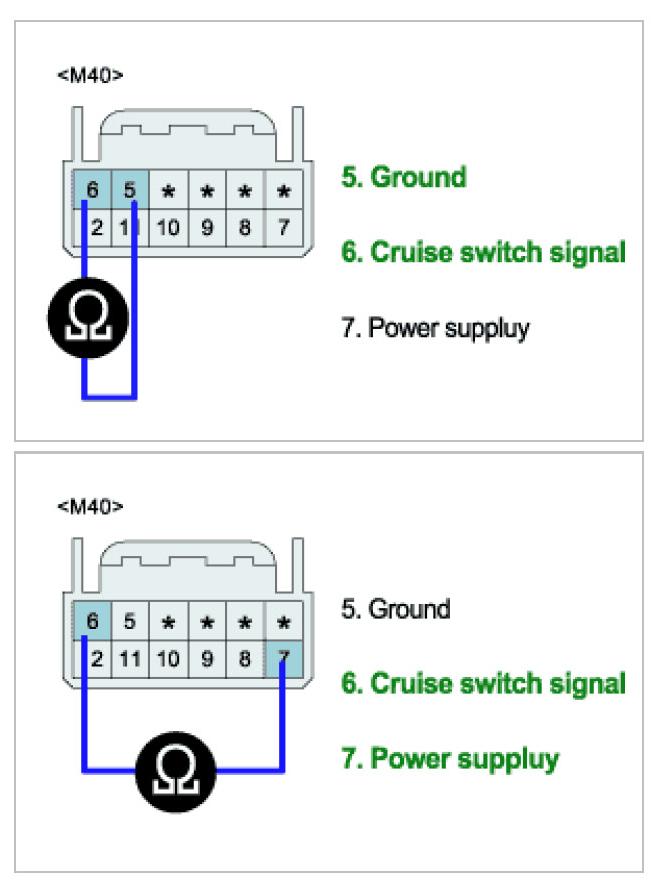

2. Measure resistance between terminals 5 and 6 of auto cruise switch harness connector.
3. Measure resistance between terminals 6 and 7 of auto cruise switch harness connector.
Specification : Infinite
4. Is the measured resistance within specification?
YES - Go to "Check open in harness as follows.
NO - Repair short in harness, and go to "Verification of Vehicle Repair" procedure.
3. Check open in harness
1. IG "OFF" and disconnect auto cruise switch connector and PCM connector.

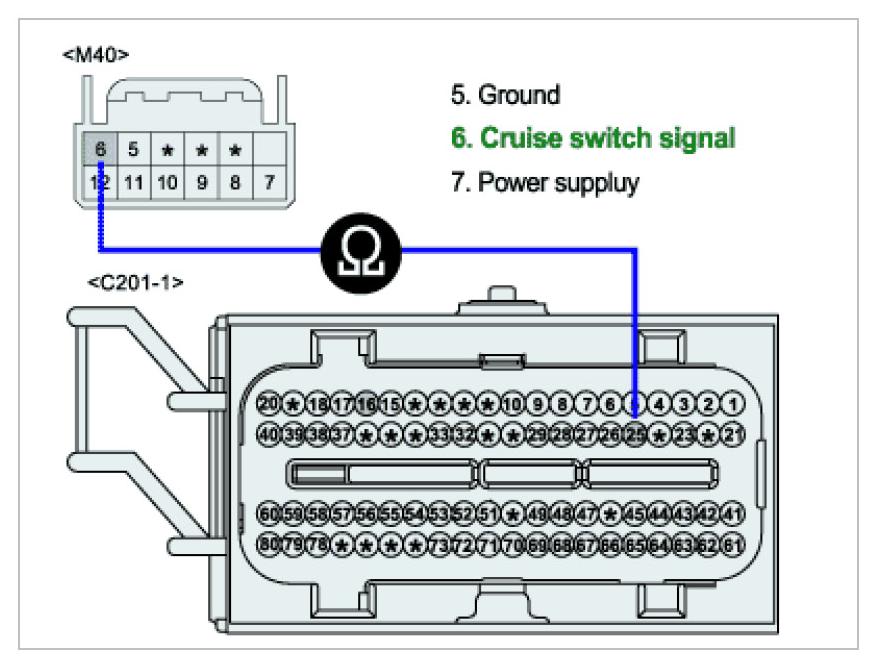

2. Measure resistance between terminal 6 of auto cruise switch harness connector and terminal 25 of PCM harness connector.
Specification : Below 1 ohm
3. Is the measured resistance within specification?
YES - Go to "Component Inspection" procedure.
NO - Repair open in harness, and go to "Verification of Vehicle Repair" procedure.
Component Inspection
1. Check auto cruise switch
1. IG "OFF" and disconnect auto cruise switch connector.

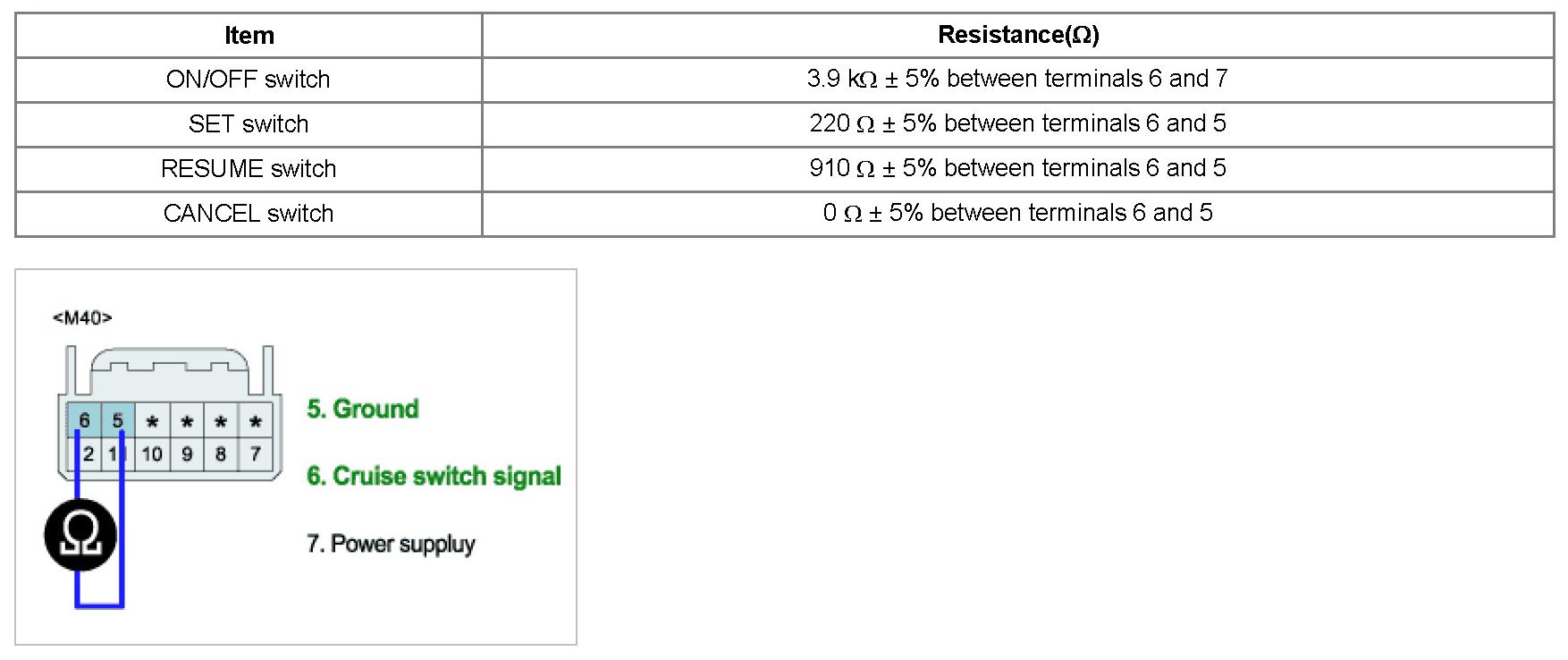

2. Measure resistance between terminals 5 and 6 of auto cruise switch connector with each switch depressed. (Component side)
3. Measure resistance between terminals 6 and 7 of auto cruise switch connector with each switch depressed. (Component side)

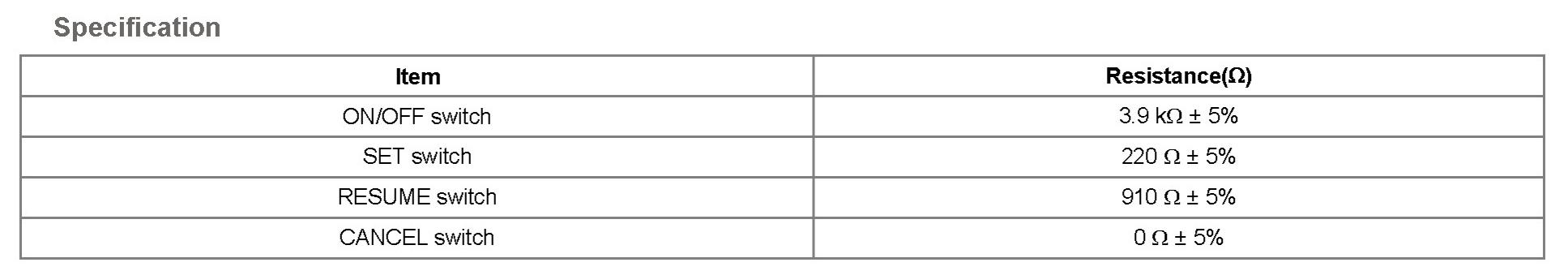

Specification :
4. Is the measured resistance within specification?
YES - Substitute with a known - good PCM and check for proper operation.
If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
NO - Substitute with a known - good auto cruise switch and check for proper operation.
If the problem is corrected, replace auto cruise switch and go to "Verification of Vehicle Repair" procedure.
NOTE: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others
Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code (DTC) which has been diagnosed.
2. Using a Scantool, Clear the DTCs
3. Operate the vehicle within conditions noted in the freeze frame data or enable conditions
4. Monitor that all readiness test have been verified as "Complete"
5. Are any DTCs present?
YES - Go to the applicable troubleshooting procedure.
NO - System is performing to specification at this time.
