P0230

COMPONENT LOCATION





GENERAL DESCRIPTION

The ECM provides ground to one side of the coil in the fuel pump relay to control the fuel pump relay. The other side of the fuel pump relay coil is connected to fuel pump relay, which activates when the ignition switch is ON. The ECM monitors the control circuit between the fuel pump relay and the ECM. When the ignition switch is turned ON, the ECM energizes the fuel pump relay, which sends power to the fuel pump.

DTC DESCRIPTION

Checking fuel pump relay circuit continuously under detecting condition, if open or short in the circuit is detected, PCM sets P0230.In addition, Take note that open circuit in Main Relay may cause this P0230 code.
** In addition, Take note that open circuit in Main Relay may cause this P0230 code.

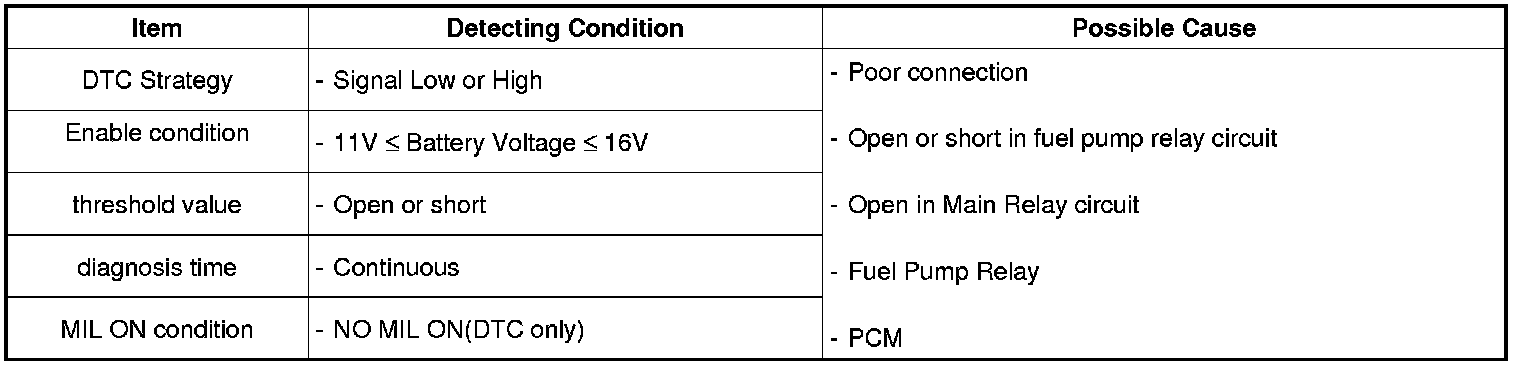

DTC DETECTING CONDITION

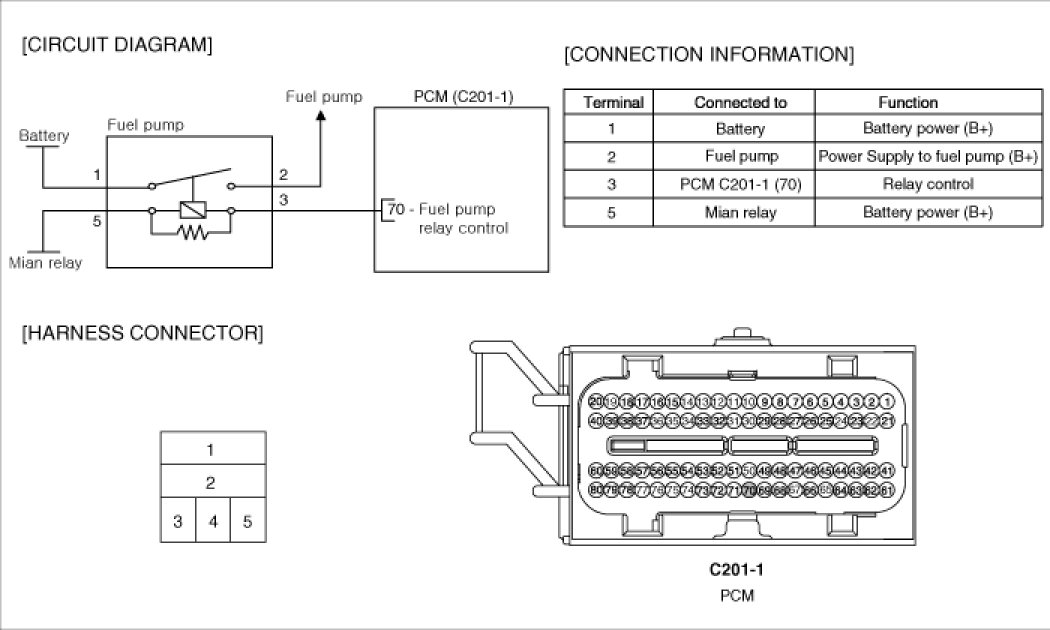

SCHEMATIC DIAGRAM





MONITOR DTC STATUS

1. Check DTC Status
(1) Connect scantool to Data Link Connector(DLC).
(2) IG "ON".
(3) Select "Diagnostic Trouble Codes(DTCs)" mode, and then Press F4(DTAL) to check DTC's information from the DTCs menu
(4) Read "DTC Status" parameter.




(5) Is parameter displayed "Present fault"?
YES
> Go to "Terminal and connector inspection" procedure.
NO
> Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
> Repair or replace if necessary and go to "Verification of Vehicle Repair" procedure
NO
> Go to "Power Circuit Inspection" procedure.

POWER CIRCUIT INSPECTION

1. IG "OFF" & ENG "OFF"
2. Disconnect fuel pump relay.
3. IG "ON" & ENG "OFF"

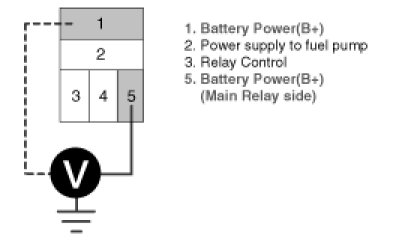

4. Measure voltage between harness terminal 1(5) of chassis ground.

Specification : B+





5. Is the measured voltage within specification ?
YES
> Go to "Control Circuit Inspection" procedure.
NO
> Check "Fuse" between fuel pump relay and main relay is not installed or blown off
> Check "Fuse" between fuel pump relay and battery is not installed or blown off
> Especially, if battery voltage at terminal 5 is not detected, replace the Main Relay.
> Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.

CONTROL CIRCUIT INSPECTION

1. IG "OFF"
2. Disconnect fuel pump relay.
3. IG "ON" & ENG "OFF"

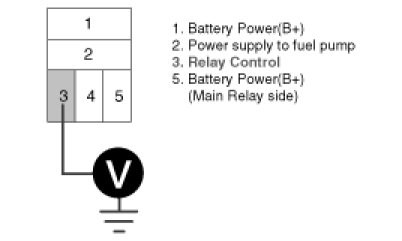

4. Measure voltage between harness terminal 3 and chassis ground.

Specification : Approx. 2.5V





5. Is the measured voltage within specification ?
YES
> Go to "Component Inspection" procedure.
NO
> Repair or repalce as necessary and then, go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION

1. Check fuel pump relay
(1) IG "OFF"
(2) Disconnect Fuel Pump Relay

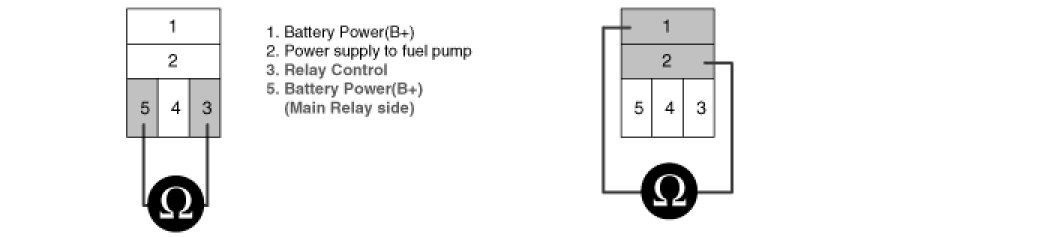

(3) Measure resistance between terminal 1 and 2 of Fuel Pump Relay

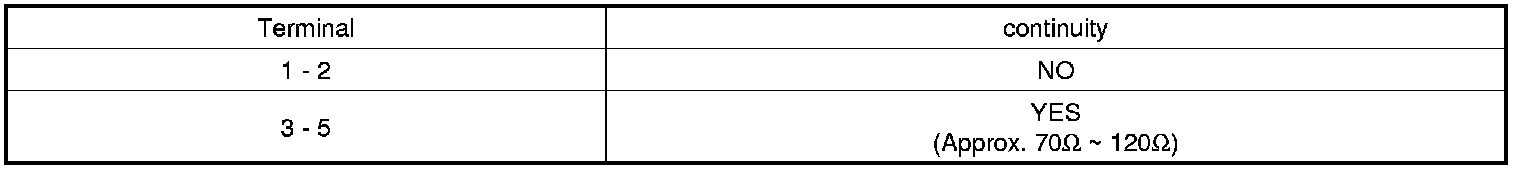

(4) Measure resistance between terminal 3 and 5 of Fuel Pump Relay
Specification :









(5) Is the measured resistance within specification ?
YES
> Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.

NOTE:
There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others

NO
> Substitute with a known - good Fuel Pump Relay and check for proper operation.If the problem is corrected, replace Fuel Pump Relay and go to "Verification of Vehicle Repair" procedure.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.
1. Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code(DTC) which has been diagnosed.
2. Using a Scantool, Clear the DTCs
3. Operate the vehicle within conditions noted in the freeze frame data or enable conditions
4. Monitor that all rediness test have been verified as " Complete "
5. Are any DTCs present ?
YES
> Go to the applicable troubleshoooting procedure.
NO
> System is performing to specification at this time.
