FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Kia
>>
2008
>>
Optima V6-2.7L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Transmission Control System
Transmission Control System

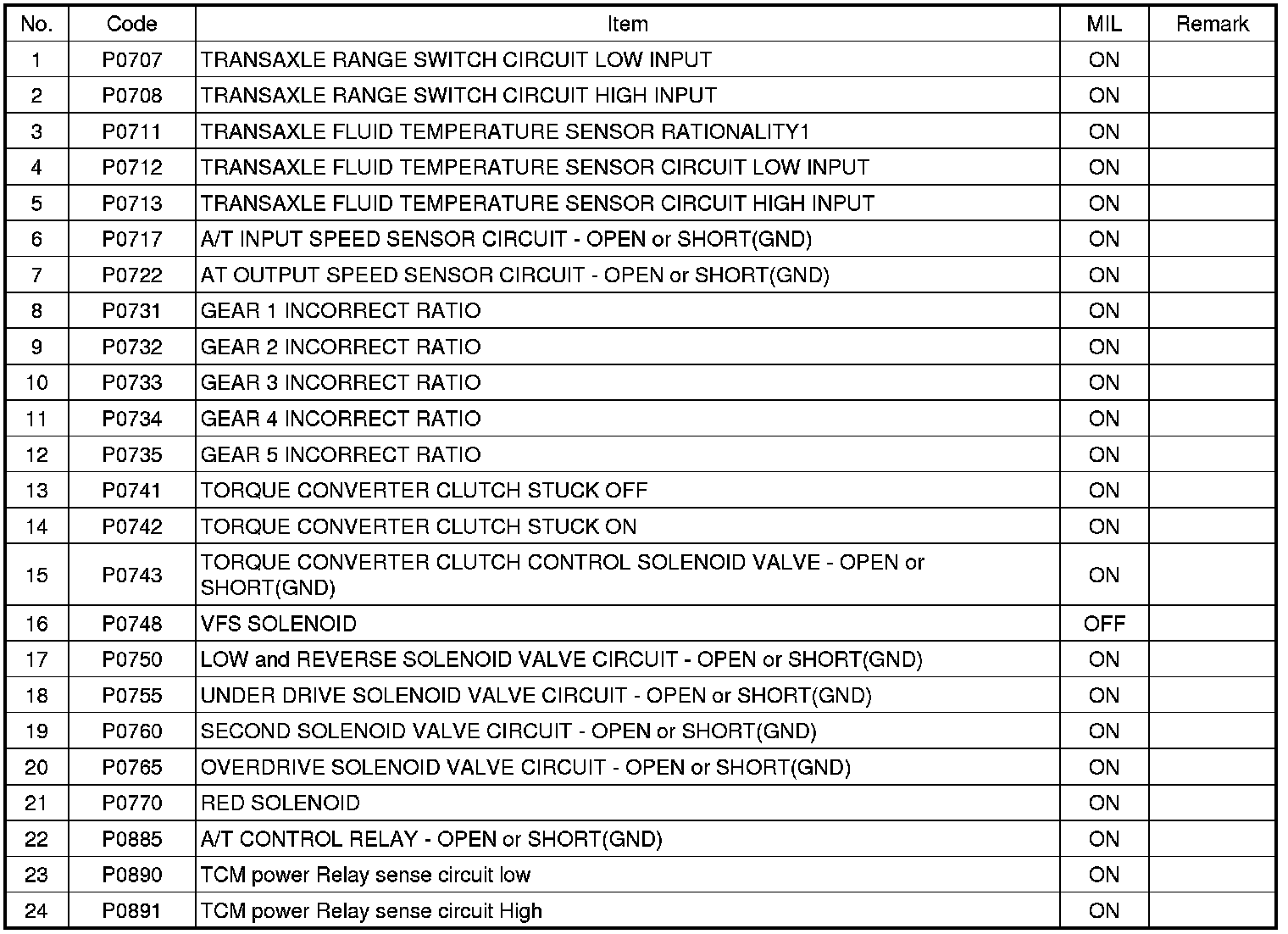

INSPECTION CHART FOR DIAGNOSIS TROUBLE CODES (DTC)
[2.7 GSL]
