B1390

DTC Description

The Seat Track Position Sensor (STPS) circuit consists of the SRSCM and STPS. The SRSCM sets above DTC(s) if it detects short or short to ground on the STPS circuit. The "Seat Forward" status currently represents a seat position in which the deployment of the second stage airbag is prohibited.

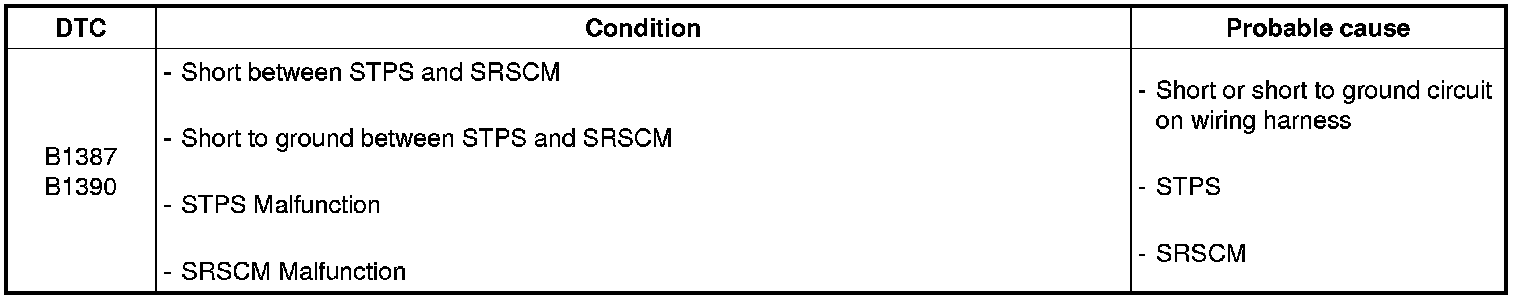

DTC Detecting Condition

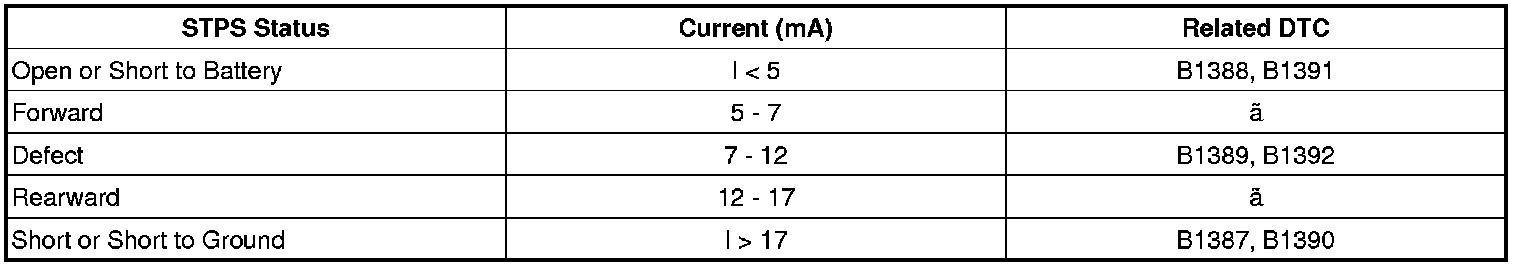

Specification





Schematic Diagram





Terminal & Connector Inspection

Refer to the DESCRIPTION in this TROUBLESHOOTING section.

Inspection Procedure

1. PREPARATION
Refer to the DESCRIPTION in this TROUBLESHOOTING section.
2. CHECK SHORT OR SHORT TO GROUND
(1) Disconnect the STPS connector.
(2) Measure resistance between the terminal 1 of STPS harness connector and chassis ground.
(3) Measure resistance between the terminal 1(6) and 2(5) of STPS harness connector.

specification(resistance) : infinite





(4) Is the measured resistance within specification?
YES
> Check the STPS.
NO
> Repair or replace the wiring harness between the STPS and the SRSCM.
3. CHECK THE SEAT TRACK POSITION SENSOR (STPS)
(1) Measure current between the terminal 1(6) of STPS and 23(24) of SRSCM.

Specification (current) : 12 - 17 mA (Rearward status), 5 - 7 mA (Forward status)


(2) Is the measured current within specification?
YES
> Go to next step.
NO
> Replace the STPS.
4. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN
Refer to the DESCRIPTION in this TROUBLESHOOTING section.
