Wiper Motor: Testing and Inspection

INSPECTION

SPEED OPERATION CHECK

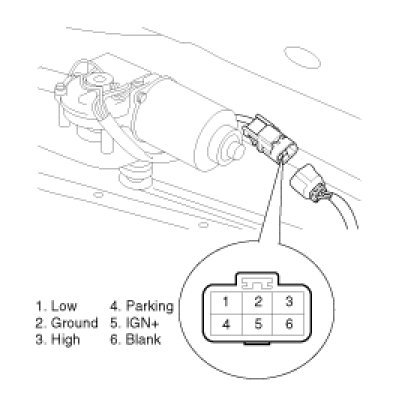

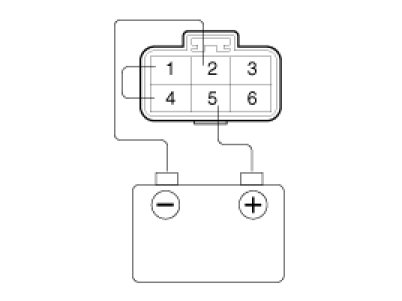

1. Remove the connector from the wiper motor.
2. Attach the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5.
3. Check that the motor operates at low speed.
4. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 5.
5. Check that the motor operates at high speed.





AUTOMATIC STOP OPERATION CHECK
1. Operate the motor at low speed using the stalk control.
2. Stop the motor operation anywhere except at the off position by disconnecting terminal 6.
3. Connect terminals 3 and 6.
4. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 5.
5. Check that the motor stops running at the off position.





INSPECTION

Check for continuity between the terminals while operating the wiper and washer switch. If normal condition is not indicated, replace wiper and wiper switch.






WIPER SWITCH





WASHER SWITCH
