Rear Suspension

REMOVAL

1. Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

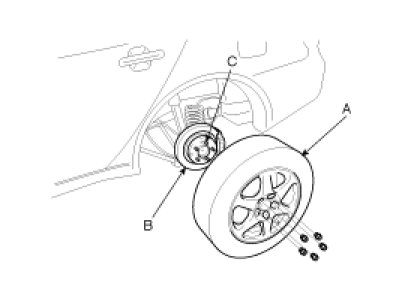

2. Remove the rear wheel and tire (A) from rear hub (B).





CAUTION:
Be careful not to damage the hub bolts (C) when removing the rear wheel and tire (A).

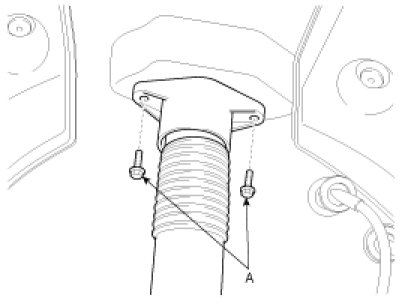

3. Remove the rear shock absorber assembly mounting nuts (A) from the body.




4. Remove the rear shock absorber assembly nut (B) from the rear knuckle, then remove the shock absorber assembly (A).






INSTALLATION

1. Install the rear shock absorber mounting bolt (A) to the body.

Tightening torque Nm(kgf.m, lb-ft) :
44.1 - 53.9 (4.5 - 5.5, 32.5 - 39.8)





2. Install the rear shock absorber (A) nut (B) to the knuckle.

Tightening torque Nm(kgf.m, lb-ft) :
137.3 - 156.9 (14.0 - 16.0, 101.3 - 115.7)





3. Install the wheel and the tire (A) to the rear hub (B).

Tightening torque Nm (kgf.m, lb-ft) :
88.3 - 107.9 (9 - 11, 65.1 - 79.6)






CAUTION:
Be careful not to damage the hub bolts (C) when installing the rear wheel and tire (A).

DISPOSAL

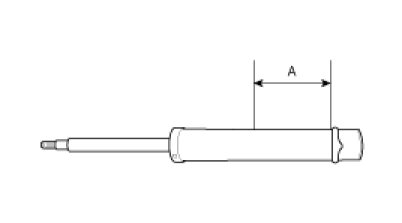

1. Fully extend the shock absorber rod.
2. Drill a hole to remove gas from the cylinder.





CAUTION:
The gas coming out is harmless, but be careful of chips that may fly up when drilling. Be sure to use face shield and safety goggles.
