Removal and Replacement

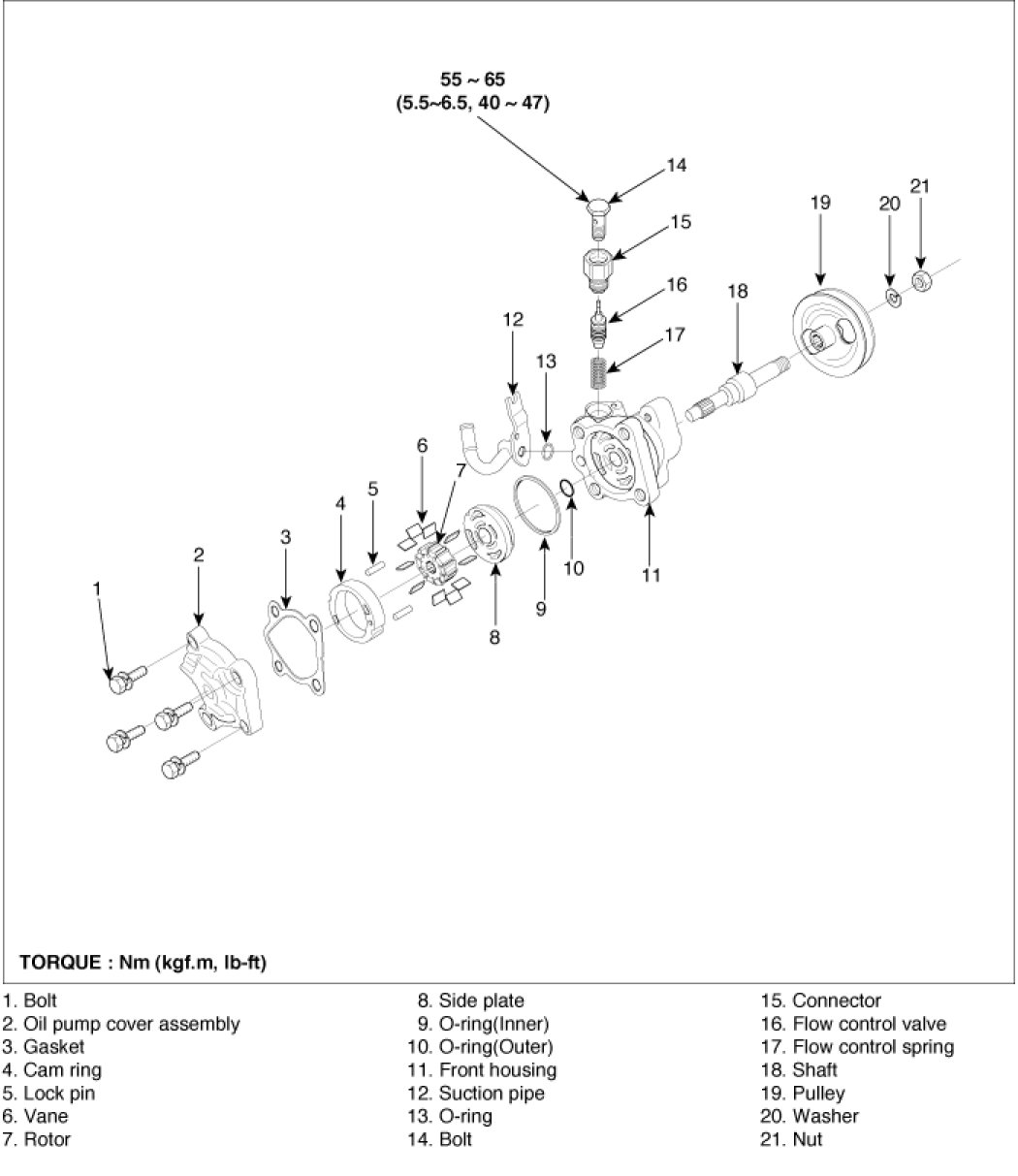

COMPONENTS






REMOVAL

1. Disconnect the oil pressure switch (A).




2. Disconnect the pressure tube (A) and return hose (B) from the power steering pump assembly.

Tightening torque Nm (kgf-m, lb-ft):
55 - 65 (5.5 - 6.5, 40 - 47)


[2.4L]





[2.7L]




3. Remove the drive belt.

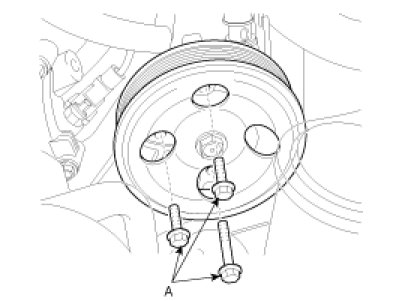

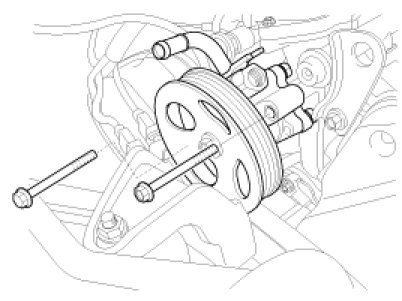

4. Loosen the power steering pump mounting bolt and nut, and then remove the power steering pump assembly from the pump bracket.

Tightening torque Nm (kgf-m, lb-ft):
2.0/2.4L : 17 - 26 (1.7 - 2.6, 12 - 19)
2.7 : 35 - 50 (3.5 - 5.0, 25 - 36)


[2.4L]





[2.7l]





NOTE:
Be careful not to spill the fluid from the power steering oil pump.

INSTALLATION

1. Installation is the reverse of removal.

NOTE:
Be sure to connect between a tube and a hose as shown in the illustration.





CAUTION:
The pressure tube does not twist and come in contact with other components.

2. Add the power steering fluid.
3. Bleed the power steering system.
4. Check the oil pump pressure.
