Fuel Filler Neck: Service and Repair

REMOVAL

1. Disconnect the fuel filler hose (A).

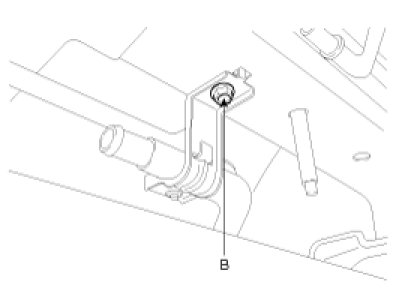

2. Disconnect the recirculation pipe quick-connector (A), the vapor hose (B) connecting the canister with the fuel tank air filter and the purge tube quick-connector (C) connecting the canister and the intake manifold.

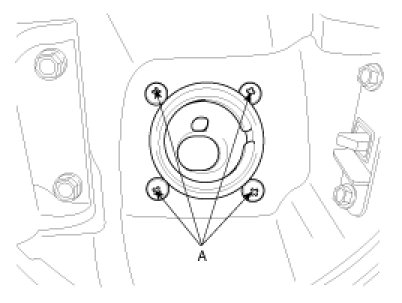

3. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).




4. Remove the rear-LH wheel, tire, and the inner wheel house.

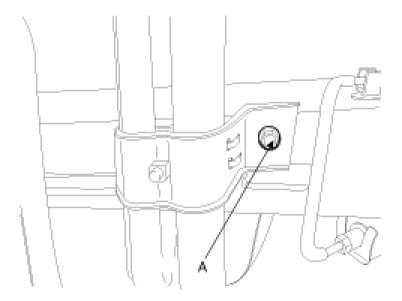

5. Remove the bracket mounting bolts (A) and remove the filler-neck assembly.










INSTALLATION

1. Installation is reverse of removal.
