Evaporative Emission Control Canister: Testing and Inspection

INSPECTION

1. Look for loose connections, sharp bends or damage to the fuel vapor lines.
2. Look for distortion, cracks or fuel damage.

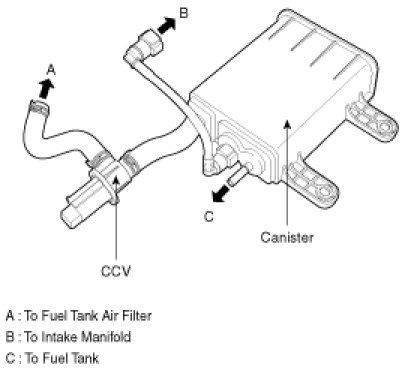

3. After removing the canister, inspect for cracks, damage or saturated canister.
