Evaporative Emission Control Canister: Service and Repair

REMOVAL

1. Remove the fuel tank.

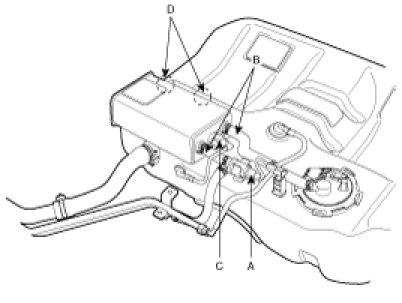

2. Disconnect the canister close valve connector (A).




3. Disconnect the vacuum hoses (B) and the vacuum tube quick-connector (C) from the canister.
4. Remove the canister after unscrewing the mounting screws (D).

INSTALLATION

Install the canister according to the reverse order of "REMOVAL" procedure.
