Rear

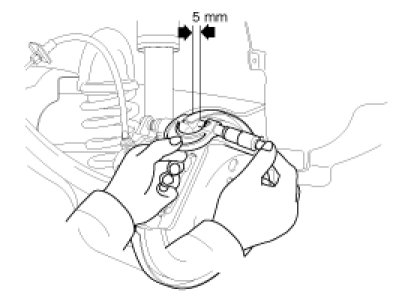

REAR BRAKE DISC THICKNESS CHECK1. Remove all rust and contamination from the disc surface, and then measure the disc thickness at 8 positions at least.
Rear brake disc thicknessStandard value : 10.0 mm ( 0.39 in) / Limit : 8.4 mm (0.33 in)
2. Thickness variation should not exceed 0.01mm (0.0004 in) (circumference) and 0.01mm (0.0004 in) (radius) at any directions.
3. If wear exceeds the limit, replace the discs and pad assembly for left and right of the vehicle.
REAR BRAKE DISC RUN OUT CHECK

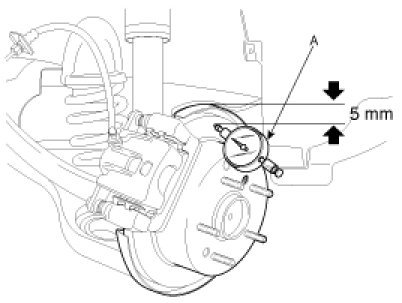

1. Place a dial gauge(A) about 5mm (0.2 in) from the outer circumference of the brake disc, and measure the run out of the disc.
Brake disc run outLimit : 0.03mm (0.0012 in) or less
2. If the run out of the brake disc exceeds the limit specification, replace the disc, and then measure the run out again.
3. If the run out does not exceed the limit specification, install the brake disc after turning it 180° and then check the run out of the brake disc again.
4. If the run out cannot be corrected by changing the position of the brake disc, replace the brake disc.
