Sunroof / Moonroof Motor: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. Disconnect the connector then remove the overhead console lamp assembly from the headliner.
3. Remove the head lining.

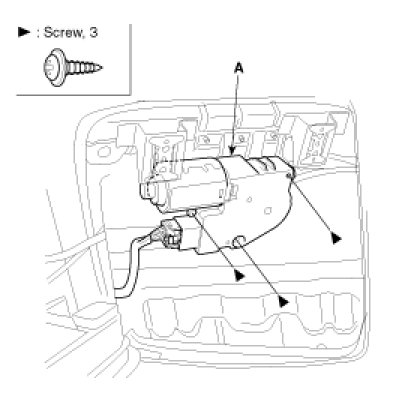

4. Remove the sunroof motor (A) after removing 3 screws and disconnect.




5. Installation is the reverse of removal.
