Power Mirror Motor: Testing and Inspection

INSPECTION

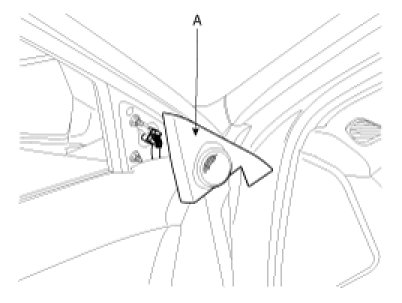

1. Remove the front door quadrant delta cover (A)

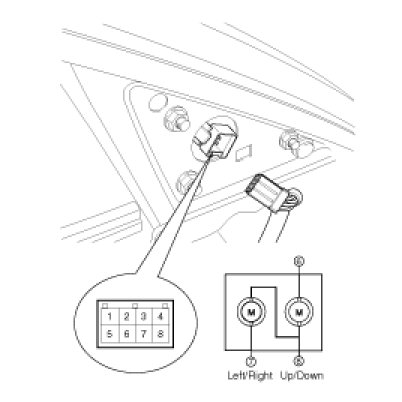

2. Disconnect the power door mirror connector from the harness.
3. Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.









MIRROR HEATER INSPECTION
