Center Lower and Upper Pillar Trim

CENTER LOWER AND UPPER PILLAR TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.

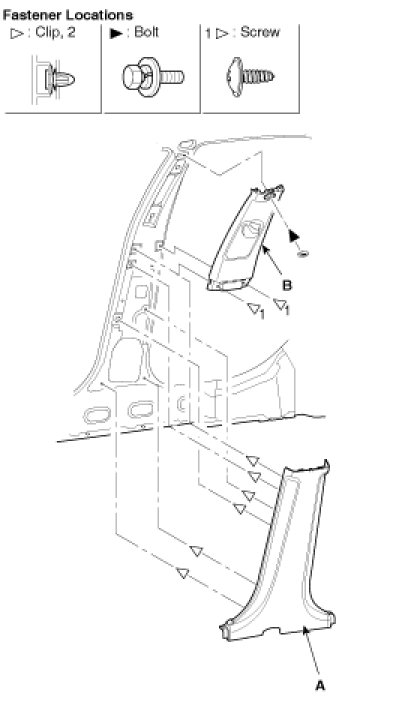

1. Remove the center lower pillar trim(A).
2. Remove the center upper pillar trim(B).




3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
