Rear Bumper: Service and Repair

REPLACEMENT

NOTE:
- After remove the rear combination lamp.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.
- Take care not bend or scratch the cover and other parts.

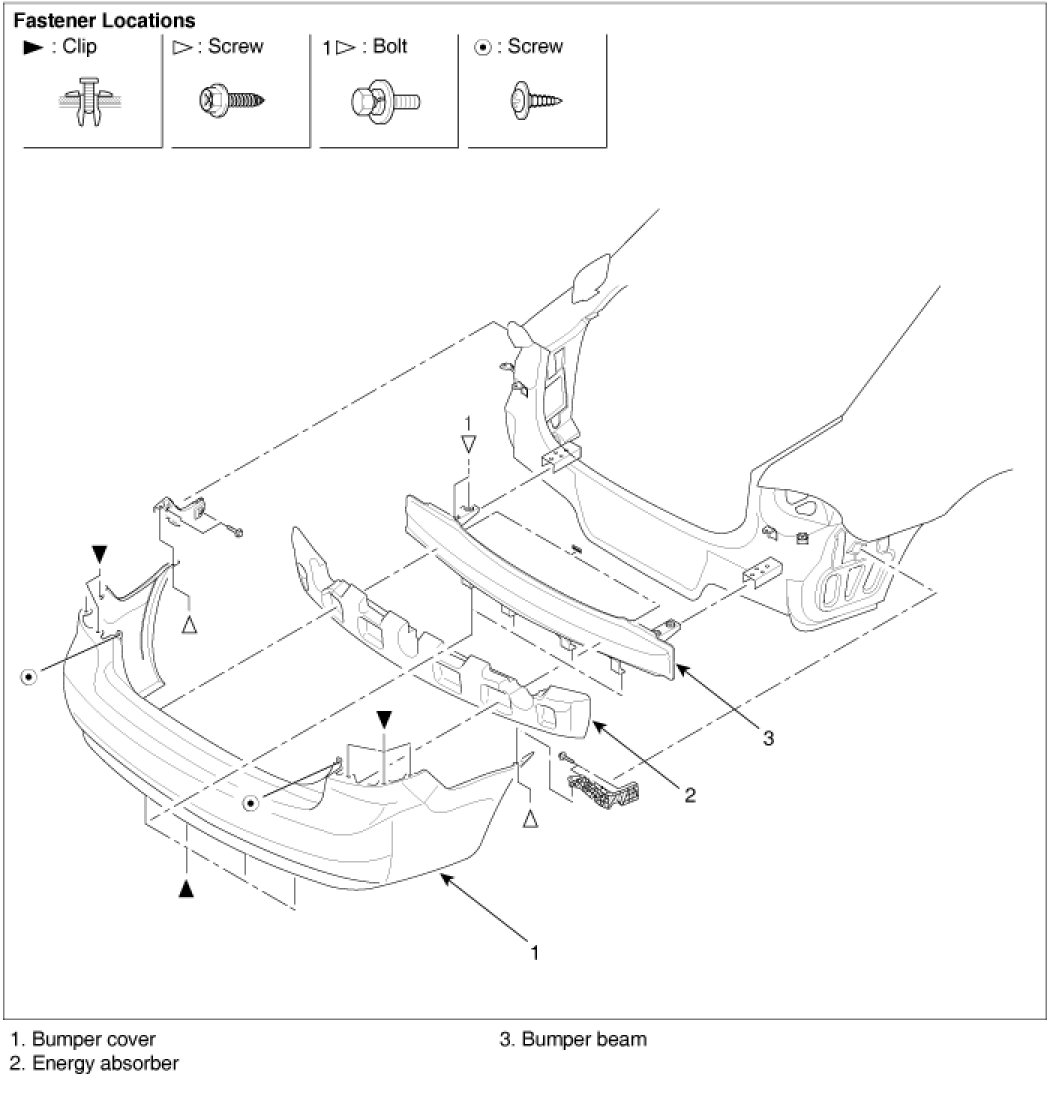

1. Remove rear combination lamp.
2. Loosen the rear bumper cover screws and clips.
3. Remove the rear bumper cover and beam.
4. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
