P0449

COMPONENT LOCATION





GENERAL DESCRIPTION

The evaporative emissions system prevents hydrocarbon (HC) vapors from the fuel tank from escaping into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The Canister Closing Valve (CCV) closes off the air inlet into the canister for leak detection of the evaporative emission system. The CCV also prevents fuel vapors from escaping from the canister. When the engine purges the HC vapors from the canister, the clean air comes into the canister through the canister air-filter and the CCV.

DTC DESCRIPTION

The ECM measures pressure in the fuel tank by means of tank pressure sensor during all engine operating states except engine stop and start. ECM sets DTC P0449 if the ECM detects that the fuel tank pressure is too low as a result of the stuck closed CCV. And the same error code is set in the next driving cycle, the ECM illuminates the MIL.

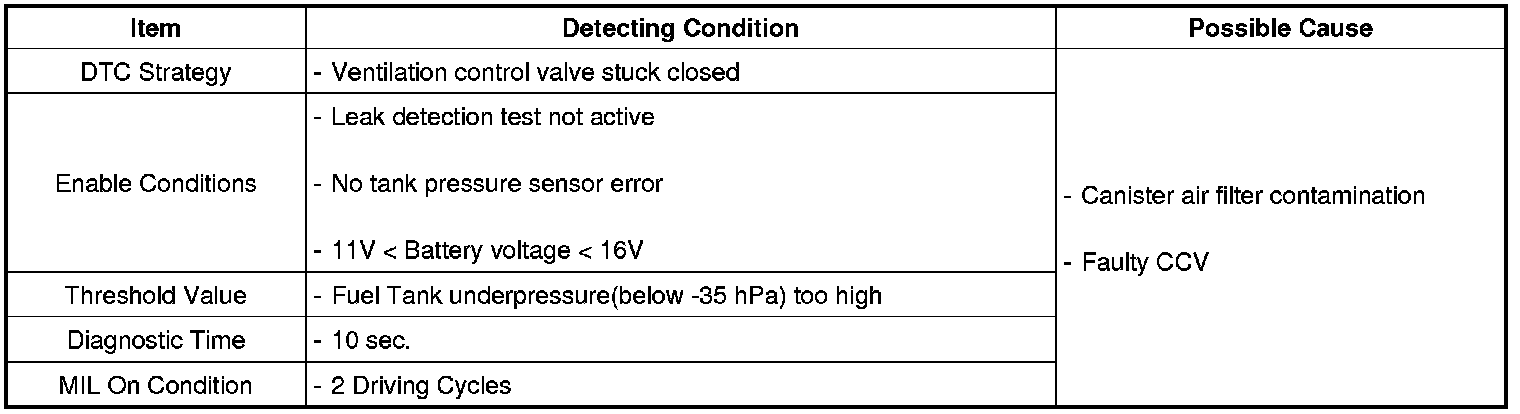

DTC DETECTING CONDITION





SPECIFICATION





SCHEMATIC DIAGRAM





MONITOR DTC STATUS

NOTE:
If DTCs (or pending codes) relating to CCV are present, do ALL REPAIRS associated with those codes before proceeding with this troubleshooting tree.

1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode
2. Press F4(DTAL) to select DTC information from the DTCs menu
3. Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
4. Read "DTC Status" parameter
5. Is parameter displayed "History(Not Present) fault"?

NOTE:
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.

YES
> Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
> Go to next step as below.

Canister Air-Filter inspection
1. Disassemble the Canister Air-Filter and hose from their respective positions.
2. Check the Canister air-filter for contamination.
3. Is Canister Air-Filter contaminated with dust?
YES
> Replace as necessary and go to "Verification of Vehicle Repair" procedure
NO
> Go to "Canister Closing Valve(CCV) inspection" procedure

Canister Closing Valve(CCV) inspection
1. Reconnect all EVAP hardware that was previously disconnected
2. Disconnect hose connecting Canister Closing Valve(CCV) to canister
3. Ignition "ON" & Engine "OFF"
4. Blow air to the canister side of the valve and verify air escapes to the air filter side.
5. Install scantool and select "CANISTER CLOSE VALVE" on the Actuation Test mode
6. Activates "CANISTER CLOSE VALVE" by pressing "STRT(F1)" key
7. Blow air into hose and verify air does not escape.
8. Repeat this procedure 4 or 5 times to ensure CCV reliability.
9. Is CCV working properly?

NOTE:
If hose was pinched or restricted:
1. Fueling would be difficult if not impossible.
2. Restriction or blockage could cause pressure to accumulate in tank triggering a P0451.

YES
> Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
> If CCV was stuck closed, inspect all lines and canister for liquid fuel. Replace any contaminated components and blow out lines. Check CCV for contamination, deterioration, or damage. Substitute with a known-good CCV and check for proper operation. If the problem is corrected, replace CCV and then go to "Verification of Vehicle Repair" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
> Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
> Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode.
2. Press F4(DTAL) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
3. Read "DTC Status" parameter.
4. Is parameter displayed "History(Not Present) fault"?
YES
> System performing to specification at this time. Clear the DTC
NO
> Go to the applicable troubleshooting procedure.
