B1515

DTC Description

The Seat Belt Buckle Switch (BS) circuit consists of the SRSCM and two BS. The SRSCM sets above DTC(s) if it detects the BS faults. This system decides whether the driver or passenger seat belt is buckled or not.

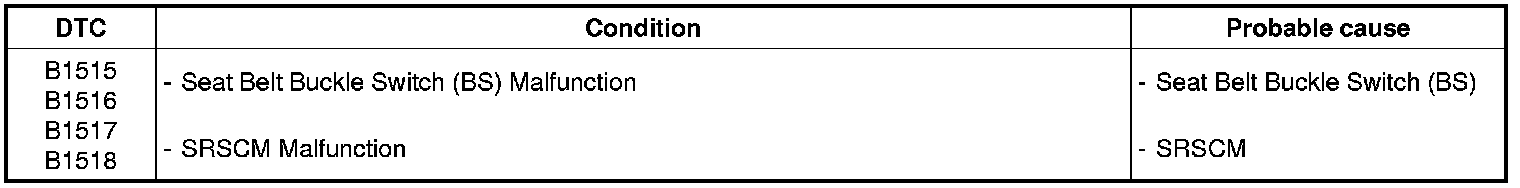

DTC Detecting Condition

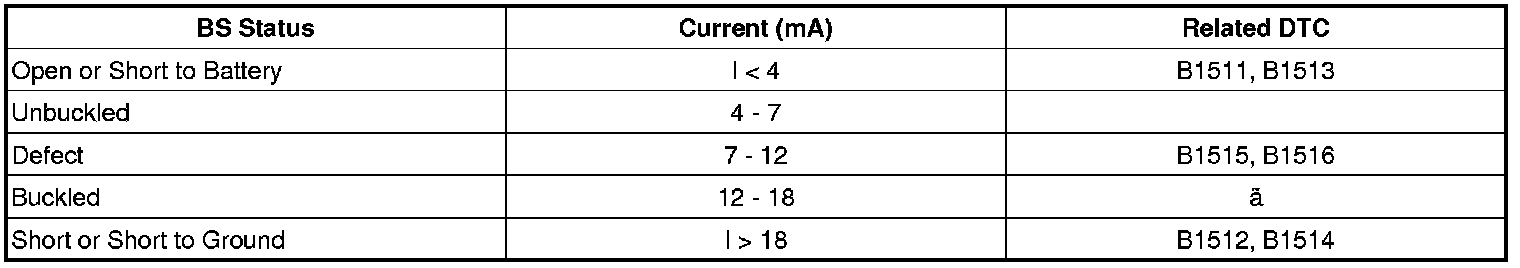

Specification





Schematic Diagram





Terminal & Connector Inspection

Refer to the DESCRIPTION in this TROUBLESHOOTING section.

Inspection Procedure

1. PREPARATION
Refer to the DESCRIPTION in this TROUBLESHOOTING section.
2. CHECK THE SEAT BELT BUCKLE SWITCH (BS)
(1) Measure current between the terminal 3 of BS and 25(26) of SRSCM harness connector(B).

specification (current) : 12 - 18 mA (Buckled status), 4 - 7 mA (Unbuckled status)


(2) Is the measured current within specification?
YES
> Go to next step.
NO
> Replace the BS.
3. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN
Refer to the DESCRIPTION in this TROUBLESHOOTING section.
