Home >> Kia >> 2008 >> Magentis (CANADA) V6-2.7L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics





TROUBLE SYMPTOM CHARTS

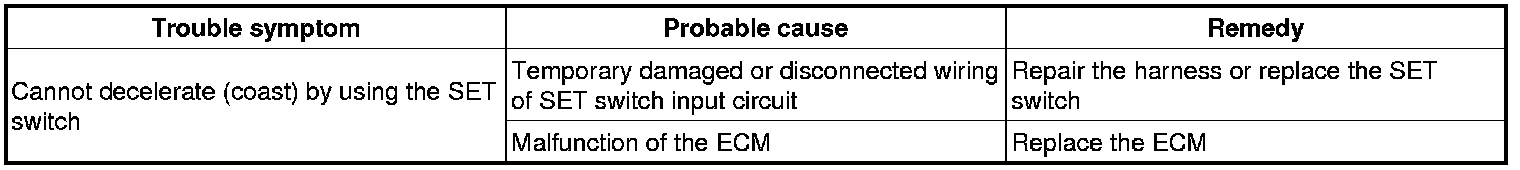

TROUBLE SYMPTOM 1

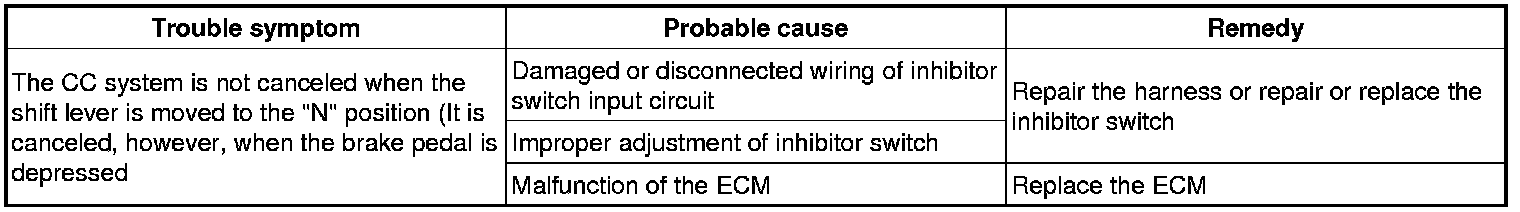

TROUBLE SYMPTOM 2

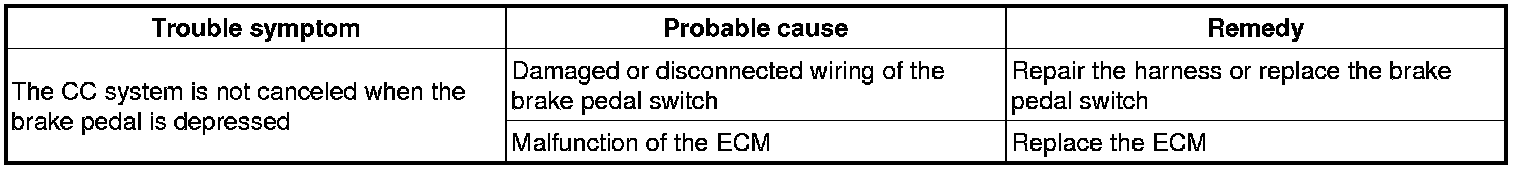

TROUBLE SYMPTOM 3

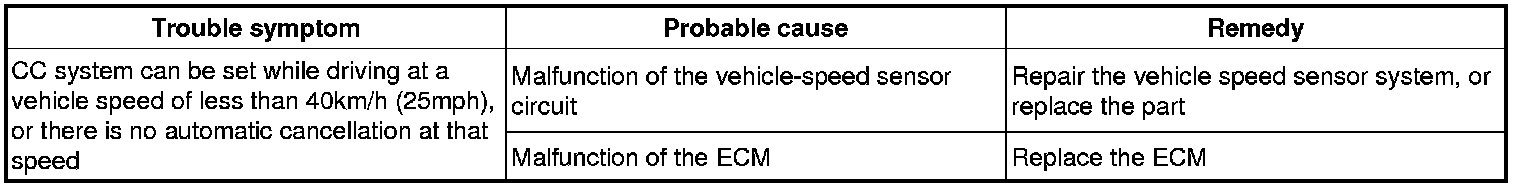

TROUBLE SYMPTOM 4

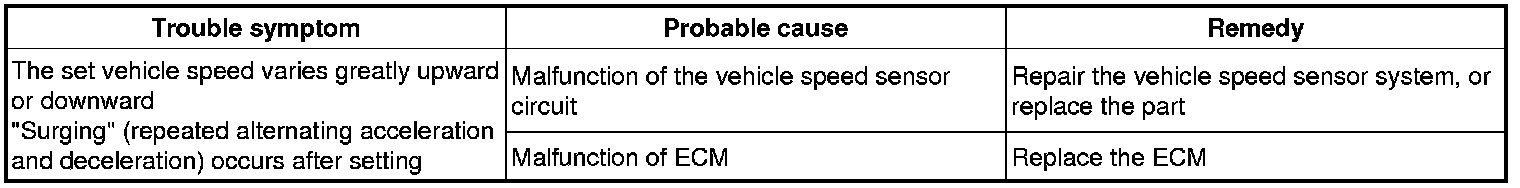

TROUBLE SYMPTOM 5

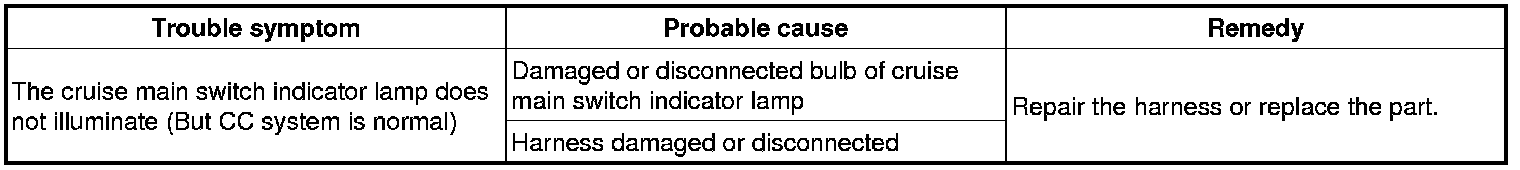

TROUBLE SYMPTOM 6

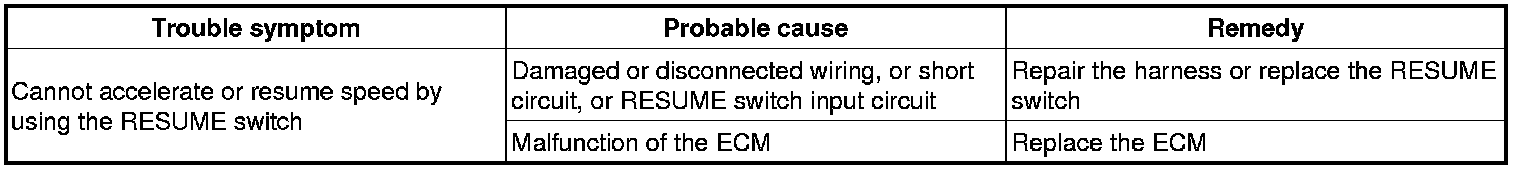

TROUBLE SYMPTOM 7





TROUBLE SYMPTOM 8
