Throttle Position Sensor

THROTTLE POSITION SENSOR (TPS)

- Type : Variable resistor type

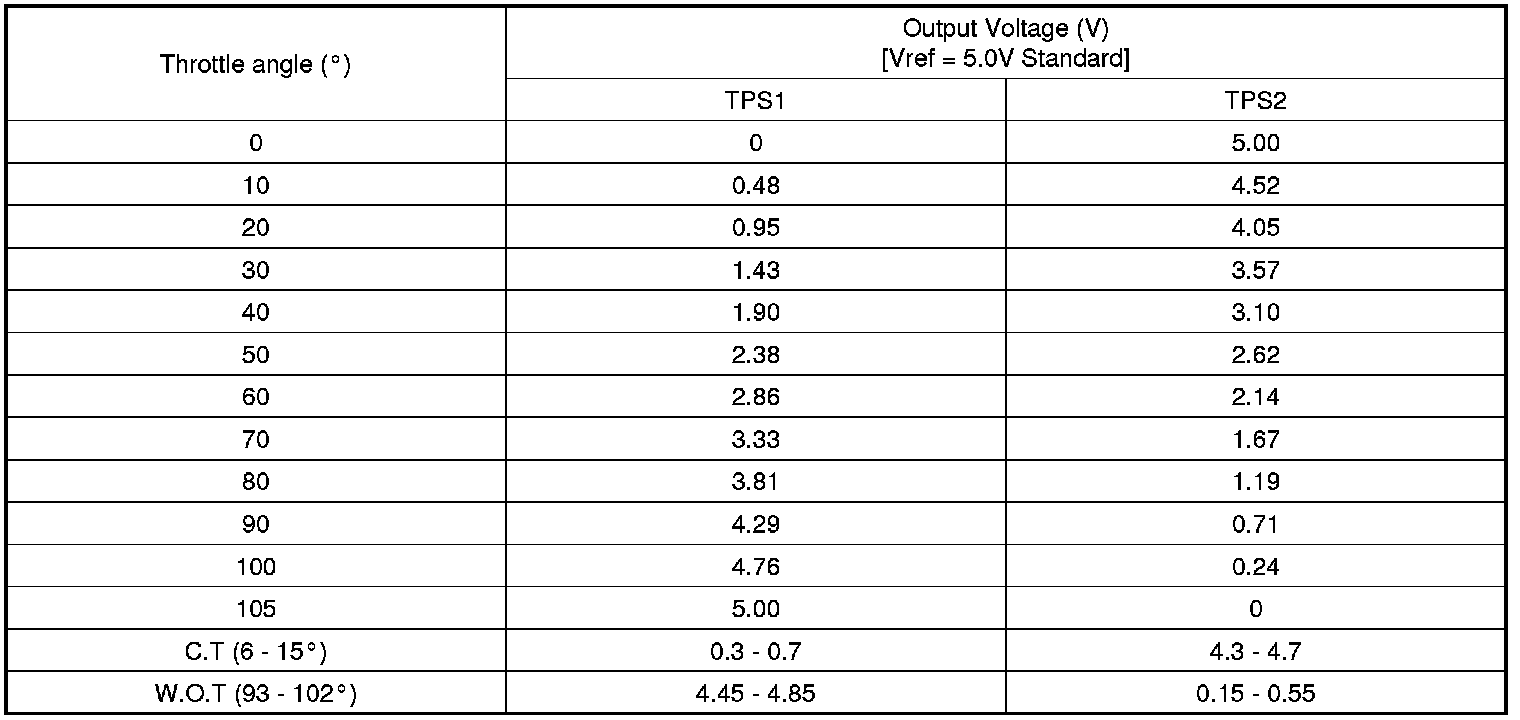

- Specification
